Sonda (Rocket)

From Handwiki
Sonda rockets family portrait
Side-by-side comparison of Sonda rockets, to scale

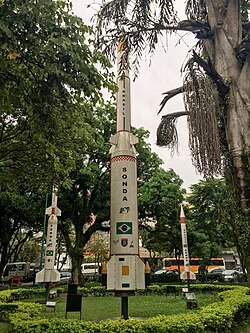

Sonda II, III and IV on display at Parque Santos Dumont

Sonda ("Probe" in English) is a family of Brazil ian-built sounding rockets which serves as an R&D path to the VLS (Portuguese: Veículo Lançador de Satélites) orbital rocket. Launches started in 1965 and continue to this day. Launch sites include Wallops Island, Andoya, Kiruna, Natal, Alcântara, Cassino and SvalRak.[1][2][3]

Sonda I

The Sonda I is a two stage rocket (S10-1 + S-10-2 rocket stages) with a maximum flight altitude of 65 km, a liftoff thrust of 27 kN a total mass of 100 kg, a diameter of 11 cm and a length of 4.5 metres. It was launched 9 times between 1965 and 1966.[4]

  • Diagram with Sonda I rocket dimensions

  • Sonda I on display

  • Sonda 1 (right) at Memorial Aeroespacial Brasileiro

Sonda II

The Sonda II is a single stage rocket (S-20 rocket stage) with a maximum flight altitude of 180 km, a Liftoff Thrust of 36.00 kN, a total mass of 400 kg, a core Diameter of 0.30 m and a total Length of 5.60 m. It was launched 7 times between 1990 and 1996.[5]

  • Diagram with Sonda II rocket dimensions

  • Sonda II at Memorial Aeroespacial Brasileiro

  • Sonda II at Memorial Aeroespacial Brasileiro

  • Sonda II on display

  • Sonda II on display

  • Sonda II at Parque Santos Dumont

Sonda III

Sonda III is a two stage rocket available in three versions, the Sonda III (S30 + S-20 rocket stages), the Sonda III M1 (S30 + S-23 rocket stages) and the Sonda IIIA (S30 + S33 rocket stages).[6] The first two versions rockets have a maximum flight altitude of 600 km, a liftoff Thrust of 102.00 kN, a diameter of 0.30 m and a length of 8.00 m. However Sonda 3 weighs 1500 kg while Sonda 3 M1 weighs 1400 kg at launch. It was launched 27 times between 1976 and 2002.[7]

  • Diagram with Sonda III rocket dimensions

  • Sonda III rocket variations

  • Sonda III at Memorial Aeroespacial Brasileiro

  • Sonda III at Memorial Aeroespacial Brasileiro

  • Sonda III at Barreira do Inferno

  • Sonda III on display

  • Sonda III at Parque Santos Dumont

Sonda IV

Sonda IV is a two stage rocket (S30 + S-43 rocket stages) with a maximum flight altitude of 800 km, a liftoff Thrust of 203.00 kN, a total Mass of 7200 kg, a diameter of 1.01 m and a length of 11.00 m. It was launched 7 times between 1984 and 1990.[8]

  • Diagram with Sonda IV rocket dimensions

  • Sonda IV at Memorial Aeroespacial Brasileiro

  • Sonda IV at Memorial Aeroespacial Brasileiro

  • Sonda IV on display

  • Sonda IV on display

  • Sonda IV at Parque Santos Dumont

  • Sonda IV on pad
