Overview[edit | edit source]

Buttons are interactive interface elements on which a user can click. As an alternative you also could start learning how to use component buttons and go through the Flash component button tutorial.

The executive summary - buttons

Buttons are interface components to add simple interactivity, such as displaying extra information, launch a movie clip etc. Any object can be button. However, Flash CS3 provides two built-in button types that already include the typical "mouse-over", "mouse-out", and "mouse-click" animations that users need in order to understand that an object on the screen represents a button

(1) To create a Flash button:

• either draw an object and make it a button (Right-click Convert to Symbol and select Button);
• or get a button from the built-in Library - buttons.fla

(2) To make use of a button:

• You have to do add some ActionScript code and that will react to a user "gesture" like a mouse click.
• Using code snippets is the easiest method for beginners.

Tip

If you lack any sort of programming experience, then download the source files I made and play with them, e.g. add an extra picture and fix the code if needed...

Overview of the built-in Flash button symbols[edit | edit source]

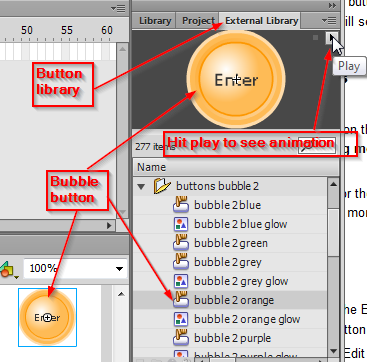

Flash contains a good variety of pre-built buttons and they can be found in the buttons library: Menu Window->Common Libraries->Buttons. You may consider docking the Library-Buttons.fla panel next to your libraries panel. See the Flash CS6 desktop tutorial on how to dock a panel.

In this section we will first just discuss the architecture of a Flash button. That type of button is just a kind of built-in movie clip symbol that implements "button animation" with four built-in frames.

In built-in buttons library, buttons are arranged in folders. Double click to open these. Then, you may may inspect various button symbols by clicking on a button. In the upper part of the library panel you will get a preview. Click on the arrow to see how the button behaves.

For use in your own animation I suggest to copy a button first to your own library (else Flash will do it for you too)

1. Right-click on the Symbol and Copy
2. Paste it to your own library. Open the library panel and hit crtl-V

Next, from your library panel simply drag the button on the stage. This will create an instance of the button. To remove it from the stage, select it and hit the delete key. You will see in the properties panel something like Instance of: rounded orange and you now should give it a name, e.g. my_button.

Customizing button symbols[edit | edit source]

Editing buttons

To customize a button symbol, double-click on either on the icon of the button symbol in the library panel or on an instance that you dragged to the scene. This will let you edit just the contents this symbol, i.e. you could think of it as Symbol editing mode.

You now could edit any graphic in any frame in any layer, e.g. change font, change the graphic or the color. For now, we suggest to leave the buttons as is for the moment and only adapt the label.

As you can see in the picture below, on the Edit Bar from left to right you can see the that we are editing the "orange bubble" button.

To change the label (and font) of a button symbol:

• Remember to double click to get in the symbol editing mode. You will see a kind of frame-by-frame animation movie (read the Flash frame-by-frame animation tutorial if you are not familiar with this).
• Lock all layers, but unlock the text layer with the label
• Change the text
• You also could change font properties of course
• Then you may have to adjust the position of the label. Click on the selection tool and move the text box with the cursors until it looks right (look at your library panel).

Creating another button

A symbol is basically something that you can use several times over, but its graphics will remain the same, including its label. Therefore, if you need buttons with other labels you must create copies of these symbols. In your library panel right-click on the icon of the symbol and select duplicate from the popup menu. Choose an appropriate name, e.g. "do not press"

Finding your workspace again

• If not already done so, I suggest adding the Edit bar: Window->Toolbars->Edit bar. It will show you exactly at what level you are editing, e.g. at the scene or at the button symbol.

There are several solutions for going back to the scene:

• Either double-click on "Scene 1" (or equivalent) or select Edit->Edit Document or hit (Ctrl-e).

The four frames and the button layers[edit | edit source]

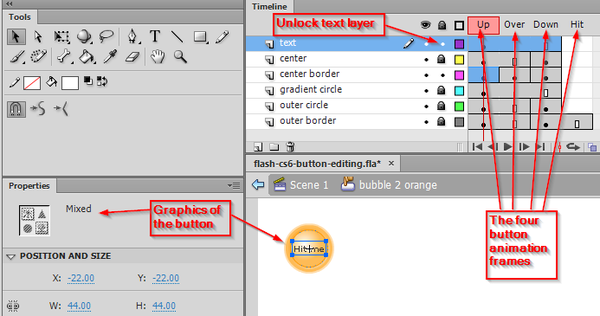

Built-in button symbols contain four frames and several layers. For each frame, different drawings may be defined but some, e.g. the label text may be reused in several layers. Look at the various frames. The four mandatory frames for button symbols (including the ones you may create) are:

Up

The button, i.e. the drawing that appears "as is" when the button is displayed in a frame of your animation.

Over

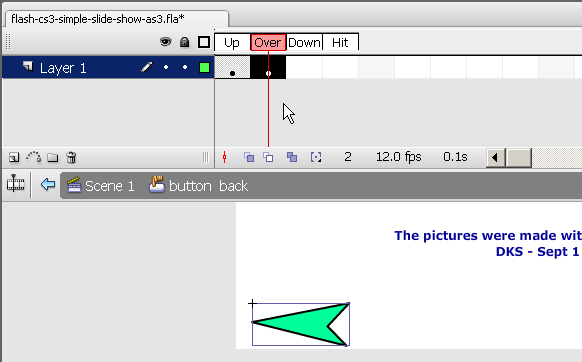

The button graphics as it appears when the user moves the mouse over it. E.g. it defines highlighting.

Down

The button as it appears when the user presses the mouse (just during the time the mouse button is held). It shows the pressing down effect.

Hit

This frame allows to define the sensible area (usually the complete button) with a graphic. Its contents will not be shown.

Various kinds of buttons have various layers (usually between three and five) depending on the complexity of the drawings. These layers contains just drawing for these four button frames. The Flash engine will then select the appropriate frame for display according to user action (mouse over, mouse down, etc.).

Beginners just should use built-in buttons. There is no need to change anything in the keyframes or the layers except the label. However, you later can change any drawings in any way you like. A button can be made of any sort of graphics you like (even pictures as you shall learn below) and you even may add animation with embedded movie clips.

Using the built-in buttons[edit | edit source]

You can attach behaviors in various ways to buttons but there is no difference between built-in buttons and the ones you can create yourself. The most obvious one is to jump to a different frame in the main timeline after the user clicks on a button.

In the next section we will use a button to launch a rocket.

A button in frame 1 to start animation in frame 2[edit | edit source]

Rocket launcher example[edit | edit source]

The goal is make a flash animation that stops at frame one when the file loads. The user then will see a button on which he can click. The animation should restart in frame 2 after the user clicked.

Preparation

• Create a background layer (we called it "sky")
• Create a layer for the button and insert a button

Create a motion tween that starts in frame 2

• If you do not how to create motion animations, please read the Flash CS6 motion tweening tutorial
• Create a new layer (we called it "Rocket")
• Position the playhead in frame 2
• Hit F7 in order to create a new empty keyframe
• Insert a drawing, make it a symbol and then create the motion tween.
• The final structure of the timeline will look like this (the "Action" layer will be added later).

Drag a button to the stage

• You can adjust its size with the Free Transform Tool (but make sure that you are not in symbol edit mode, i.e. working on the button graphics)
• Edit the text field (double click twice) on the text for example, make this label "Go!" for example.

Name the button instance

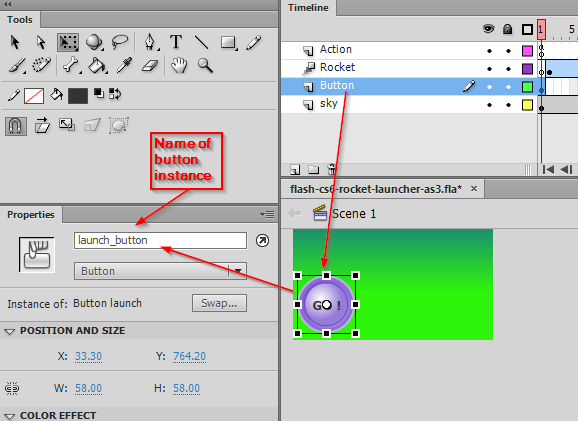

We have to give the launch button (not the symbol in the library but the thing we got on stage) a name. Once you drag a library item to the stage you produce an instance of the symbol. In order to find this instance, Flash needs to know it by name. It's like in magic: you name it - you control it ;)

• Let's call this button instance:

 launch_button

• Open the properties panel and fill in the field (see below):

Make sure that the name is doesn't have any blanks or special symbols inside (actually Flash will complain if you define an illegal name).

Adding ActionScript code

In order to make Flash buttons interactive, we will have to write some code. This code must be defined for the same frame(s) as the button but we usually use a different layer.

• The scripting layer is usually called "Script" or "Action" or "AS3".
• To enter the ActionScript editor, just select the right frame in the "script" layer and the hit F9. So, let's code now:

Add AS3 stopping code to the timeline

• Add another layer and call it "Action" or "Script"
• Click on Frame 1 in this new layer, then hit F9 and in the Actions-Frame panel insert:

 stop();

This will just stop the execution of the main timeline "movie". I.e. Flash will only display the contents of the first frame (all layers) and then wait.

Add AS3 code for navigation

• Now we will add some more code below the stop (); line. So click again in frame 1 of the Action Layer and hit F9:

Add this below the "stop();":

 launch_button.addEventListener(MouseEvent.CLICK,launchRocket);
 function launchRocket(event:MouseEvent) { gotoAndPlay(2); }

You should see something like this:

We cannot really explain event driven programming here (see the ActionScript 3 event handling tutorial), but the principle is the following: For each object that can react to user actions you have to define what will happen when the user does something, e.g. click with the mouse.

• Firstly, define a function that "does something", e.g. move the playhead in the timeline to another frame. In our case we called the function launchRocket.
• Second, associate this function with the "user clicks on the button" event. The addEventListener method let's you define what function will be called when a user does something with the button (in this case, clicking on it). In other words, you add an Event Listener to the button (e.g. one that will observe button clicks) and you tell this Event Listener what function to call when this happens.

Code reuse

Of course you can reuse this code for a similar problem, i.e. moving the animation to another spot of the timeline when the user presses a button. All you need to do is this:

• Put a button on your stage (e.g. one from the Flash library)
• Then give this button instance a name
• Then change the number in gotoAndPlay(2);. E.g. change it to 5 if you want it to jump to frame 5.

Tip: If your code is getting bigger, un-dock the Actions Frame panel and pin it down. Hit F9 to to hide it again.

Results

• You can look at my published result: flash-cs6-rocket-launcher-as3.html
• You can grab the flash-cs6-rocket-launcher-as3.fla file to play.
• Directory:

http://tecfa.unige.ch/guides/flash/ex6/buttons-intro/

Exercise - Enter button for an animation[edit | edit source]

• Get one of your motion animations
• Drag all animation keyframes from frame 1 to frame 2. Click and drag when you see the white rectangle attached to the mouse cursor.
• Add a new layer and call it Action
• Insert some graphics / text on frame 1 (else your flash animation will look really empty)
• Then add a button that will allow a user to jump to frame 2 when he hits the button
• Add the ActionScript (don't forget to also add a "stop();".

If this sounds too complicated, you can start with less:

1. Create a new layer and select frame 1
2. Drag a button from the button library to the stage and name this button instance "start" in the properties panel.
3. Hit F9 and copy/paste this code:

stop();
start.addEventListener(MouseEvent.CLICK,launch);
function launch (ev){ gotoAndPlay (2); }

We now have an "Enter" button in the first frame of the animation. As soon as the user will click on it, the animation will move to frame 2 and play the rest. Of course, this means that you have to put something in frame 2 (and beyond) that users can look at.

Exercise - Use code snippets to enter ActionScript ocde[edit | edit source]

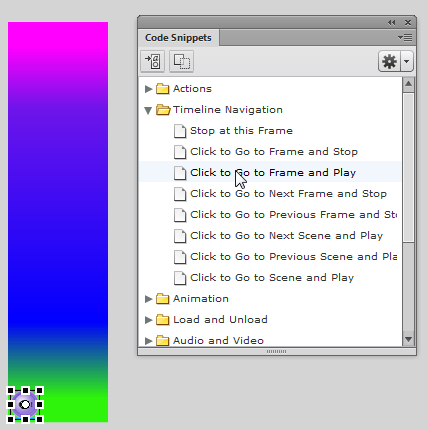

Instead of typing or copy/pasting code, you also could use the code snippets panel:

• Get it with menu Windows->Code Snippets
• Select the button on the stage
• Open "Timeline Navigation" and select "Click to Got to Frame and Play"

• Flash then will create an Action Layer if it doesn't already exist and insert the following code.

/* Click to Go to Frame and Play
Clicking on the specified symbol instance moves the playhead to the specified frame
 in the timeline and continues playback from that frame.
Can be used on the main timeline or on movie clip timelines.

Instructions:
1. Replace the number 5 in the code below with the frame number you would like the
   playhead to move to when the symbol instance is clicked.
*/

launch_button.addEventListener(MouseEvent.CLICK, fl_ClickToGoToAndPlayFromFrame);

function fl_ClickToGoToAndPlayFromFrame(event:MouseEvent):void
{
	gotoAndPlay(5);
}

• All you have to do is make some minor modification. In our case, you will have to replace "5" by "2" and add a "stop ();".
• You can look at my published result: flash-cs6-rocket-launcher-as3-code-snippets.html
• You can grab the flash-cs6-rocket-launcher-as3-code-snippets.fla file and compare it with the solution above. As you can see, the behavior of both is identical.
• Directory with files:

http://tecfa.unige.ch/guides/flash/ex6/buttons-intro/

Menu-based flash sites and named frames[edit | edit source]

You can build little flash "web" sites with buttons with what you just learned. The principle is simple:

1. Put contents in in various frames (you can use multiple layers of course). We also will show how to name frames, which is a good policy for that type of application.
2. We will stop Flash from playing all the frames by inserting the "stop();" instruction in frame 1.
3. We then will create a button for each "page" X (i.e. keyframe X) and then write some code for each button that will transport the user to frame "Y".

We show you how to do this step-by-by with ActionScript 3:

Step 1 - create "pages"

• Create a "Pages" layer
• Put each "page" into a frame (text, pictures, videos, whatever static information)
• If you don't want menus to overlap with contents, make sure to leave an empty area for the menu on each of these pages (e.g. on top or to the left of the picture)

Step 1b - variant with animations

• You also can add animations if you like. But put these in different layers or alternatively and better create these as movie clips, i.e create a movie symbol first, then edit it. But make sure that no frames from different layers overlap. The principle of a simple flash web site is that a user will jump to different frames.

Step 2 - Create the menu

• Create a new layer and call it "Menu" for example
• Insert in frame #1 of this "Menu" layer all the buttons that will lead to each of the "pages". Extend this layer to the last frame of your "pages" layer (hit F5). We want the navigation menu to visible all the time.

For each button:

• Drag a button from the buttons library to the stage
• Change the label: Double click on the button, then unlock the text layer, then change it.
• Give it also an instance name in the parameters panel, e.g. sunrise_btn.
• Once you are done, use the align tool to distribute and align them correctly.

Step 4 - name your frames

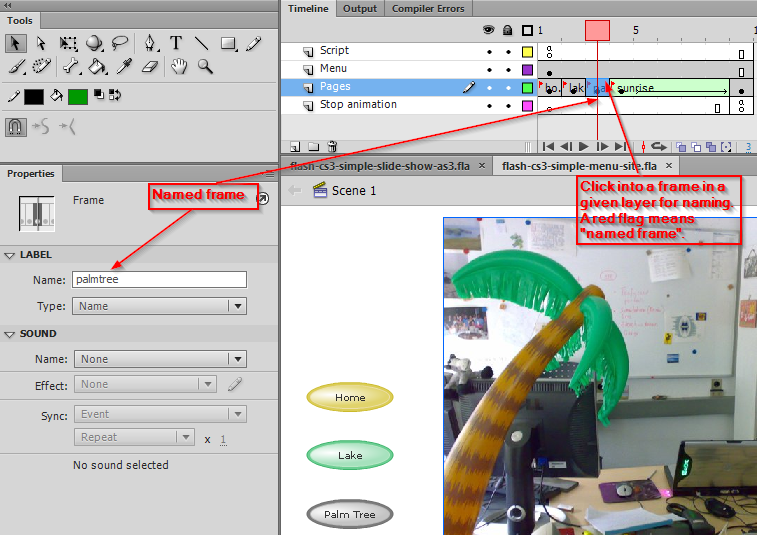

You may not have heard of "named frames" so far, but they are quite practical and using named frames is good development policy. If you use names for frames, you later can move them around. Also it is easier to remember names.

To name a frame:

• Click in each frame that marks the start of a "page" in your flash site (i.e. where buttons will lead to) and insert a name in the properties inspector at the bottom.

Step 5 - Verify

• Each button instance must have name.
• Each frame which you want the user to reach with a button click, should have a name.

Step 6 - Create the script

• Create a new layer and call it "scripts" for example
• Edit frame 1 of this layer ("scripts): Hit F9
• Extend this layer if needed (e.g. hit F5 in frame 8), else you won't see your buttons.
• Insert Action Script for each button as below.

We basically use two actions:

gotoAndStop ("your_frame_name"); to jump to a frame and stop

gotoAndPlay (...); to jump to a frame and let it play until it runs into a stop.

The script then should look something like this. I think I made it as simple as possible for non-programmers. Code inserted between /* .... */ is just comment, i.e. information that Flash will not interpret but that is useful to you as a developer.

/* This will stop Flash from playing all the frames
   User must stay in Frame 1 */
stop();

/* Associate a different handler function for each button instance:
   Syntax: button_name.addEventListener(Event.type, function_name
   Lines below mean:
   * If the user clicks on the palmtree_btn with the mouse,
     then the function clickHandler3 defined below will execute
*/

home_btn.addEventListener(MouseEvent.CLICK, clickHandler1);
lake_btn.addEventListener(MouseEvent.CLICK, clickHandler2);
palmtree_btn.addEventListener(MouseEvent.CLICK, clickHandler3);
sunrise_btn.addEventListener(MouseEvent.CLICK, clickHandler4);

/* Each function defines where to move the playhead in the animation.
   E.g. clickHandler2 will go to frame 3 and then stop   */

function clickHandler1(event:MouseEvent) { gotoAndStop("home"); }
function clickHandler2(event:MouseEvent) { gotoAndStop("lake"); }
function clickHandler3(event:MouseEvent) { gotoAndStop("palmtree"); }

/* This one does not stop, it will play the animation */
function clickHandler4(event:MouseEvent) { gotoAndPlay("sunrise"); }

If it doesn't work

• There may be syntax errors and Flash will tell you so in the Output panel that will pop up. Look at the line numbers.
• You many have misspelled the button and frame names in the script. ActionScript is case-sensitive !

Results

• You can look at my published result here
• Source: flash-cs3-simple-menu-site.fla
• You can grab all the files flash-cs3-simple-menu-site.* from this directory:

http://tecfa.unige.ch/guides/flash/ex/buttons-intro/

Next steps

• You can do the same thing with so-called button components. You can't change the button form easily, but it's a slightly faster procedure. See the Flash components tutorial.

A simple slide show with your own buttons[edit | edit source]

Objectives

• We will first show how to create your own simple buttons.
• Then we show some ActionScript code that demonstrates how to make a simple slide show with only two buttons (forward/backward) and that extend throughout the animation.

The purpose of this application is again to explain buttons and some Action Script, not to make the perfect slide show tool.

To create a slideshow, we will first import the pictures and adjust the stage. This way we we can get a feel for the size of buttons needed. Then we draw the buttons. Finally we will make it interactive

Step 0 - Open a new file

• Select Action Script 3 (This code will not run with Action Script 2.0 !).

Step 1 - prepare some pictures

• Before importing the pictures, it's a good idea to make them all the same size, e.g. I made my pictures 640x480. If you work under windows, simply use the MS Office Picture manager. It's better to start with right (small) size, since this will reduce the size of the Flash file you later will deliver.
• Then import these pictures to the library: Menu File->Import->Import to Library. Select all the pictures you would like to import, then click OK. (Alternatively, just drag the pictures into the library panel from Windows).
• Importing to the library will turn them into symbols. That way we can later reuse them if we want to.

Step 2 - Adjust the stage size

• Create a new layer, called "Pictures". In the first keyframe you may insert some text with the TextTool, e.g. "Picture show" (you can fix this later)
• Create a new keyframe in frame 2 (hit F7)
• Drag a picture on the stage of frame 2, then make the stage as big (at least) as the picture. You also can make the stage a big bigger and then select for instance a black background
• To adjust the pictures' position, use the properties panel below, i.e. set W and H to 0 (else use the align panel).

Step 3 - Put your pictures into different keyframes

• If you have 8 pictures you need to add 7 new keyframes.
• One way to do this is to put your cursor in frame 2 of the picture layer, then hit F7 ("Insert new blank keyframe") 7 times
• Then drag a picture into each of these keyframes and align them too (as above).
• Control if all pictures are ok and in place by moving the playhead from left to right (red rectangle on top of the timeline)

So you should have something like this.

Step 4 - Draw a forward, a home and a backward button

• Create a new layer and name it Buttons and select it (also lock the pictures layer).
• To draw buttons, you may use the Polystar tool and a variety of transform tools, or just simply draw a triangle and get done with it ...
• Then you also want to reduce the alpha channel (i.e. make these buttons transparent). In the color panel, put Alpha to 40%.
• Once you got a forward button, make a copy and flip it horizontally (menu Modify->Transform->Flip Horizontal).

Step 5 - convert these graphics into to symbols

• Save both buttons as button symbols (right-click on each graphic you made).
• Use decent names for these, e.g. "button_forward"

• Remove the graphics from the stage (yes kill them!)

Step 6 - place the buttons and name them

• Select the buttons layer (the one with the single frame).
• Drag a forward and backward button from the library to the stage
• Move both buttons into an a appropriate position.

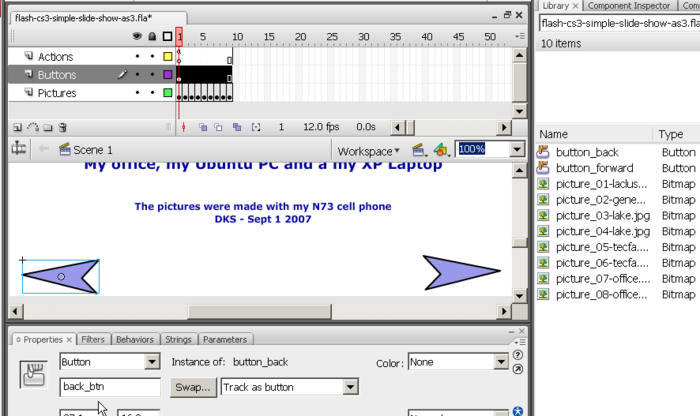

• Then give a name to each of these 2 instances in the properties panel: "forward_btn" and "back_btn".

So now you should have something like 2 button symbols in the library and an named instance of each on the stage.

Step 7 (optional) - Add some highlighting

• Double-click on the backward button in the library. This will get you in symbol editing mode.
• Hit F6 in frame 2 ("Over")
• Change the color of the button.

As you will see, the button will change color when you move the mouse over it. Do the same with the other button.

Step 8 - Add action script code to the timeline

• Insert a new layer, call it "Action"
• Go to frame one of this layer and hit F9

Firstly insert a stop to the animation:

 stop();

This is ActionScript code that will stop the animation right after frame one is loaded. Only by clicking the buttons can the user then go forward or backward.

Then insert this slide show code:

forward_btn.addEventListener(MouseEvent.CLICK,forward);
back_btn.addEventListener(MouseEvent.CLICK,backward);

function forward(event:MouseEvent) {
	if (this.currentFrame == this.totalFrames)
	{
		gotoAndStop(1);
	}
	else
	{
		nextFrame();
	}
}

function backward(event:MouseEvent) {
	if (this.currentFrame == 1)
	{
		gotoAndStop(this.totalFrames);
	}
	else
	{
		prevFrame();
	}
}

This ActionScript 3.0 code firstly adds Event Listeners to each button as we have seen before.

The forward function has some "if-then-else" logic inside. Let's look at its "if-then-else" statement.

	if (this.currentFrame == this.totalFrames) { gotoAndStop(1); }
	else { nextFrame(); }

Meaning: When the user clicks on the forward button, the Flash engine will check if the current frame is the last frame then move to frame 1 else just move to the next frame.

The backward function implement the following:

	if (this.currentFrame == 1) { gotoAndStop(this.totalFrames); }
	else { prevFrame(); }

Meaning: If we are on the first frame then go to last frame, else go to the previous frame.

In order to use this slide-show code for your own slide show you do not need to understand it. Just copy and paste it, but make sure that your forward button instance is called "forward_btn" and the backward button instance "back_btn".

Tip: If this doesn't work, make sure that your Publish settings say ActionScript 3. It won't work with ActionScript 2. Also make sure that your button instances are named and that these names correspond to the ones you use in the script. It doesn't matter how you name the button symbols, we talk about button instances here !

Step 9 - Make sure your buttons extend to all frames

Finally, make sure that these buttons are displayed throughout the "movie"

• Select the buttons layer, click the last frame (where the last picture sits) and Right-click->Insert Frame (or hit F5). A the end you should see little white rectangle.

Your timeline should roughly look like this:

Step 10 - Tuning

You may want to fix the title page.

Results

• You can look at my published resulthere
• Source: flash-cs3-simple-slide-show-as3.fla
• You can grab all the files flash-cs3-simple-slide-show-as3.* from this directory:

http://tecfa.unige.ch/guides/flash/ex/buttons-intro/

This slide show was fairly simple. Now you maybe would like to use fancier buttons. See Animated buttons below.

Image maps with pictures[edit | edit source]

You can make image maps from bitmaps too. I.e. you could use a picture and then insert "hot spots".

Steps (more details when I have time):

Prepare an image

• Put an image on the stage

• Break it apart

Carve out a fragment

• Deselect the image !

• Grab some region with the Lasso tool

• Right-click -> Convert to symbol. Select button !. You now should have an image fragment in the library

Edit this button and change the "mouse-over" and "mouse down" pictures

• Double-click on this button in the library. You should be in symbol edit mode. Alternatively you can click on the button in the stage. This will show you the whole picture ... I prefer the first method for this job.

• Hit F6 three times to produce copies in the same positions

• In Frame 2 and 3 make a copy of the shape, then move it while the cursor is still on to an empty space

• Modify->Union this copy into a graphic

• Make it a color with a low alpha

• Move it over the picture shape (but do not move the shape in any way).

.... This gets you a roll-over region :)

Results

• You can look at my published resulthere
• The source file:

flash-cs3-image-map.fla

• Directory:

http://tecfa.unige.ch/guides/flash/ex/buttons-intro/

Buttons with tweens inside[edit | edit source]

If you like the idea of crazy buttons, you really can use all your graphics and animation skills. Buttons can include any kind of graphics, including embedded movie clips.

In order to use animations within button symbol frames, you simply create an embedded movie clip (see Flash motion tweening tutorial or Flash embedded movie clip tutorial) and then put it in one of the "up", "over" or "down" frames of the button symbol.

Results

• You can look at my published result here
• The source file:

flash-cs3-button-animation.fla

• Directory:

http://tecfa.unige.ch/guides/flash/ex/buttons-intro/

ActionScript summary[edit | edit source]

First, create a layer in the timeline called "Script" or "Action". Use frames in this layer to script behaviors. You can extend the scope of a script by hitting F5 in the timeline (same principle as for backgrounds).

To attach some behavior to a mouse click, use code like this:

 button_instance_name.addEventListener(MouseEvent.CLICK,function_name);

 function function_name (event:MouseEvent):void {
   gotoAndPlay(2);
 }

Replace 'button_instance_name' and 'function_name' by whatever naming is appropriate.

• 'button_instance_name' refers to the name of the button instance (in the properties panel !
• function_name can be anything you like (but do not use spaces or special characters in function names, except the underscore "_".

Here is a good example:

 go_button.addEventListener(MouseEvent.CLICK,goFrameA);
 function goFrameA (event:MouseEvent) { gotoAndPlay(2); }

Here is a bad example ("go-button" has a dash, and "go Frame" is two words)

 go-button.addEventListener(MouseEvent.CLICK,goFrameA);
 function go FrameA (event:MouseEvent) { gotoAndPlay(2); }

Some useful ActionScript "instructions":

stop();

will stop the animation. You can insert stops(); wherever you like in your timeline.

gotoAndStop(4);

will jump to frame #4 and stop. Use this for still pictures.

gotoAndPlay("my_frame");

will jump to frame called "my_name" and play that frame and the following ones. Use this for animations that extend over several frames. But then consider inserting a "stop();" in the last frame of that animation.

gotoAndPlay(4);

will jump to frame #4 and play the rest (as above).

Other kinds of buttons[edit | edit source]

• Any movie clip symbol (and other sprites) can be made into a button
• See also the built-in Flash component button

To turn a symbol into a button (see for example the ActionScript 3 interactive objects tutorial

// changes just the cursor into a hand
thing.buttonMode = true;

// add an event listener like for a normal button
thing.addEventListener(MouseEvent.CLICK, do_something);

function do_something (event) {
// launch some animation, i.e. an movie clip that is embedded in the thing.
// trigger something ...
}

Links[edit | edit source]

Manuals[edit | edit source]

• Flash Professional Help / Creating buttons (Adobe, retr. Feb 2013)

Slide shows[edit | edit source]

If you search the Internet you can find lots of Flash slide shows. Some commercial, some tutorials, some good, some outdated. Here are a few:

Text tutorials

• http://www.toxiclab.org/tutorial.asp?ID=79
• http://www.flashvault.net/tutorial.asp?ID=118

Video tutorials

• Creating slideshows in Flash CS3 by Craig Campbell. The basic version is free.

Examples of slide show tools

• Slideshowpro (commercial kit)
