Introduction[edit | edit source]

This is a beginners tutorial for XSLT. It will teach you how to render XML contents in HTML.

Learning goals

Understand the purpose of XSLT, i.e. be able to think of XSLT as a translation language.
Do simple transformations from XML to HTML
Be able to use simple XPath expressions (tag and attribute names) in template selectors and for element and attribute extraction.

Prerequisites

Editing XML (being able to use a simple DTD). Catch up with the Editing XML tutorial
If you plan to create your own XML: DTD tutorial
XML namespaces (some, have a look at the XML namespace article)
HTML and CSS (some)

Next steps

XPath tutorial - basics (will teach some more advanced XSLT tricks based on XPath expressions)
XSLT for compound documents tutorial
XSLT to generate SVG tutorial
XQuery tutorial - basics (if you have interest in XML databases)
PHP - MySQL - XML tutorial - basics (shows how to display an XML result-set retrieved form MySQL with XSLT)

Warning

XSLT is a rather complex transformation language. I believe that one could distinguish four levels of difficulty:

This tutorial is introductory (level 1)
Level 2 XSLT could be defined as using more sophisticated template ordering, conditional expressions, loops, etc.
Level 3 is using advanced XPath expressions
Level 4 is using XSLT as functional programming language (template calls)

Some of level 2 and 3 is covered in XPath tutorial - basics. Some more in the XSLT to generate SVG tutorial.

Introduction Extensible Stylesheet Language Transformations[edit | edit source]

XSLT essentials and goals

XSLT is a transformation language for XML. That means, using XSLT, you could generate any sort of other document from an XML document. For example, you could take XML data output from a database into some graphics.
XSLT is a W3C XML language (the usual XML well-formedness criteria apply)
XSLT can translate XML into almost anything , e.g.:
- wellformed HTML (closed tags)
- any XML, e.g. yours or other XML languages like SVG, X3D
- non XML, e.g. RTF (this is a bit more complicated)

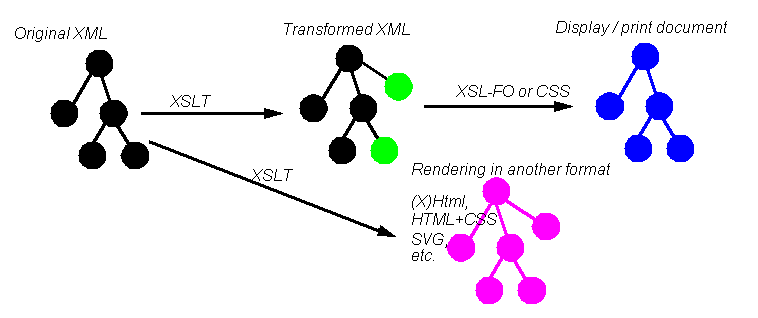

The picture below shows some use cases. In principle, the input data to be transformed is always XML. With XSLT we then can produce some "enriched" or otherwise transformed XML or directly some other format that is used to render the contents.

Keep in mind that XSLT doesn't understand HTML or any other sort of "contents" ! Frequently, beginners assume that XSLT knows about HTML, in particular that it can deal with links and pictures. All XSLT can do, is translating XML elements into something else. Part of this confusion may stem from the fact that XSLT programs are called "stylesheets". There is no styling in XSLT, period.

XSL-FO, on the other hand, was the initial target of the XSL project. It never was implemented in web browsers and this is the reason why we translate XML contents to HTML + CSS for web display. XSL-FO, however, is a very good solution for creating print documents from XML. This only can be done with server-side scripts or programs that you can install on your PC.

History and specifications[edit | edit source]

Specification

XSLT 1.0 was formalized as W3C Recommendation on 16/11/99: http://www.w3.org/TR/xslt
- Most modern web browser support most of it (even Safari)
XSLT 2.0 is a W3C recommendation since 23 January 2007: http://www.w3.org/TR/xslt20/
- not implemented in current browsers, but in most good XSLT processors (e.g. Saxon)
XSLT 3.0 is a W3C working draft: http://www.w3.org/TR/xslt-30/ (10 July 2012)

History

Initially, back in the nineties, XLS (XSL: eXtensible Stylesheet Language) was a project to replace CSS for both display and print media and to provide support for complex formatting and layout features (pagination, indexing, cross-referencing, recursive numbering, indexing, etc.

XSLT ( Extensible Stylesheet Language Transformations ) was originally intended as a small part of a larger specification for XSL. However, after the XSL specification draft became very large and complex, it was decided to split the project into two parts: XSLT for transformations (that were urgently needed) and XSL (also called XSL-FO) for the formatting (W3C recommendation of 2001)

Related languages

XPath (XML Path language used by XSLT, XQuery, etc.), http://www.w3.org/TR/xpath. XPath identifies particular parts of an XML document. Read the XPath tutorial - basics
XSL also called XSL/FO (the Formatting Language), http://www.w3.org/TR/xsl/. XSL-FO is mostly used to produce PDF contents on the fly.
XQuery (Query language for XML), http://www.w3.org/TR/xquery/. This an alternative to XSLT that is better suited for extracting information from XML files or XML databases. Read the XQuery tutorial - basics

A first glance at XSLT[edit | edit source]

Simple use of XSLT means creating program in a file (wrongly called a stylesheet). This file is associated with an XML file in a conceptually similar way as CSS with an HTML file. Since your web browser includes an XSLT processor, the browser will not display the XML (you can still look at the source), but it will execute the XSLT and display the result of the translation, e.g. HTML5.

Alternatively, you can use an XML editor or a XSLT processor to translate XML contents to files and then put these result files on the web or print them. Finally, you could install server-side software that does this. E.g. PHP5 includes an XSLT processor, but unfortunately it does not support XSL-FO. To process the latter you likely need some Java-based software.

Root of an XSLT file stylesheet[edit | edit source]

An XSLT program is an XML document. It's top-level skeleton looks like this:

<?xml version="1.0"?>
  <xsl:stylesheet version="1.0"
                  xmlns:xsl="http://www.w3.org/1999/XSL/Transform">
 ....
</xsl:stylesheet>

Mandatory "elements"

An XML declaration on top of the file
A stylesheet root tag, including version and namespace attributes (as seen in the example above):

 version="1.0"
 xmlns:xsl="http://www.w3.org/1999/XSL/Transform"

Furthermore:

Usually the "xsl" prefix is used for XSLT tags, but you also can find "xs" or none if you look at examples.
XSLT must be wellformed and valid, i.e. obey the XSLT specification
XSLT files usually have the *.xsl extension and should have the text/xsl or application/xml mime type when served by http (a web server). So make sure that your web server is configured correctly.

Association of XML and an XSLT file[edit | edit source]

You can directly associate a XSLT stylesheet with an XML file by using a so-called processing instruction (similar principle as CSS stylesheets). This solution will work with all modern web browsers. Btw. XSLT was already implemented in IE 5.5., i.e. in the last millenium...

<?xml version="1.0"?>
 <?xml-stylesheet href="project.xsl" type="text/xsl" ?>
 <yourxml>
    ....
 </yourxml>

There exist various so-called XSLT processors. Most programming languages and all well-know server-side scripting languages like PHP include an XSLT library. XML editors usually include an XSLT processor. This means that you also could tell some program to apply an XSLT stylesheet to an XML file. In other words, you only need to use a xml-stylesheet instruction if you plan to display XML contents directly in a browser.

Basic XSLT[edit | edit source]

Basic (!) use of XSLT means:

Translating XML to HTML
Creating translation rules (aka templates) for each XML tag we want to translate. Basically, a template will tell how a given XML element and its contents should be translated into HTML. All text inside the template that is not XSLT, i.e. does not start with xsl: will be found in the output.

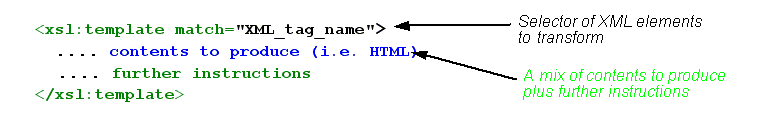

A simple translation rule (called "template" in XSLT)

Example Translation of a title tag into HTML centered H1

XML Source we want to translate:

<title>Hello friend</title>

Wanted result:

<h1>Hello friend</h1>

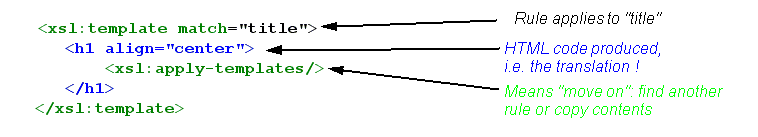

XSLT rule that does it

A complete XSLT example[edit | edit source]

Below is the complete code for a simple "Hello XSLT" example.

XML file (source)

hello.xml

<?xml version="1.0"?>
 <?xml-stylesheet href="hello.xsl" type="text/xsl"?>
  <page>
   <title>Hello</title>
   <content>Here is some content</content>
   <comment>Written by DKS.</comment>
</page>

Wanted result document

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.0//EN" "http://www.w3.org/TR/REC-html40/strict.dtd">
 <html>
   <head>
     <title>Hello</title>
   </head>
   <body bgcolor="#ffffff">
     <h1 align="center">Hello</h1>
     <p align="center"> Here is some content</p>
     <hr><i>Written by DKS</i>
   </body>
 </html>

The XSLT Stylesheet

hello.xslt

 <?xml version="1.0"?>
 <xsl:stylesheet version="1.0"
                 xmlns:xsl="http://www.w3.org/1999/XSL/Transform">

 <xsl:template match="page">
    <html>
      <head>
        <title> <xsl:value-of select="title"/>
      </title>
     </head>
     <body bgcolor="#ffffff">
      <xsl:apply-templates/>
     </body>
    </html>
   </xsl:template>

   <xsl:template match="title">
    <h1 align="center"> <xsl:apply-templates/>  </h1>
   </xsl:template>

   <xsl:template match="content">
    <p align="center"> <xsl:apply-templates/> </p>
   </xsl:template>

   <xsl:template match="comment">
    <hr/> <i><xsl:apply-templates/> </i>
   </xsl:template>
 </xsl:stylesheet>

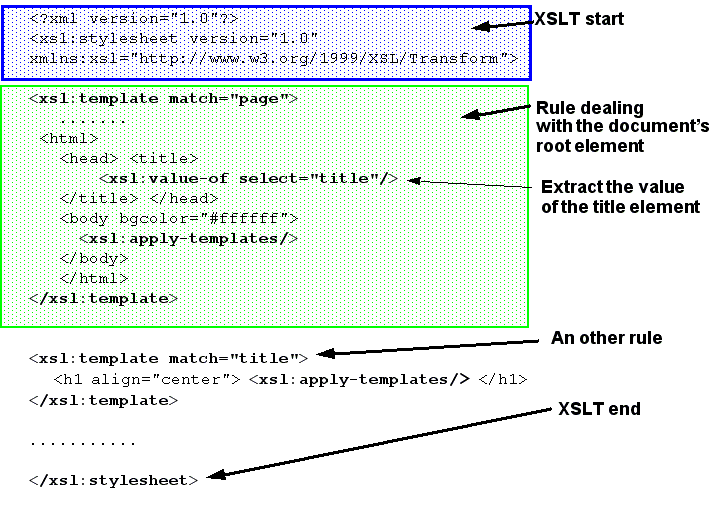

The picture below explains the anatomy of this simple stylesheet. We could distinguish between:

some sort of prolog that would include the XML header and (optionally) as we shall see later some kind of output and input directives;
the all important template that will triggered by the either the root of the file "/" or the XML root element, e.g. "page" in our case;
additional templates.

Rule execution order[edit | edit source]

(1) The XSLT engine first looks at the XML file and tries to find an XSLT template/rule that will match the root element

E.g. in the above example it will find "page" and then the template for page

(2) The XSLT processor will then "move" inside the rule element and do further processing

Non XSLT Contents, for example simple text or HTML elements and their attributes and contents, will be copied to the output document
If an XSLT instruction is found, it will be executed

 <xsl:apply-templates/>  means: "go and look for other rules"

E.g. in the above example

the processor dealing with root element "page" will first find a rule for "title" and execute it according to the same principle.
once it is done with "title" and its children, it then will find the rule for "content" and execute it

(3) and so forth .... It is important to understand that the XSLT processor always works within a given context. In our example, if the processor is within the "page" element, it then will recognize title, content and comment as child elements. If the processor is within the content element, it will only see text in the example above.

More information about the XSLT code in the example above[edit | edit source]

<xsl:value-of select="title"/> will retrieve contents of the "title" child element.
- In our example, it would only work in the template for "page", since only "page" has a "title" child
You have to understand that XSLT works down "depth-first" the XML tree, i.e.
- it first deals with the rule for the root element,
- then with the first instruction within this rule.
- If the first instruction says "find other rules" it will then apply the first rule found for the first child element and so forth...
- The rule of the root element is also the last one be finished (since it must deal step-by-step with everything that is found inside) !!!

The procedure recapitulated[edit | edit source]

(1) Create a XSLT stylesheet file: xxx.xsl

(2) Copy/paste the XSLT header and root element below (decide encoding as you like)

<?xml version="1.0" ?>
 <xsl:stylesheet version="1.0" xmlns:xsl="http://www.w3.org/1999/XSL/Transform">

</xsl:stylesheet>

(3) Write a rule that deals with your XML root element This rule must produce the root, head and body of the HTML (copy/paste this too, but replace "page ")

<xsl:template match="page">
   <html>
    <head>
     <!-- <title> <xsl:value-of select="title"/> </title> -->
    <title>A wonderful HTML page made from XML</title>
    </head>
    <body bgcolor="#ffffff">
      <xsl:apply-templates/>
    </body>
   </html>
</xsl:template>

(4) Write rules for each (!!) of your XML elements,

for each insert some HTML, sometimes some text, or sometimes nothing
make sure to place a <xsl:apply-templates> inside each rule (usually between some HTML) ... unless you wish to censor contents.

A typical simple rule might look like this:

<xsl:template match="element_name">
    <h1>Some kind of heading</h2>
    <div class="element_name">
      <xsl:apply-templates/>
    </div>
   </xsl:template>

(5) Associate this stylesheet with your XML file using:

 <xml-stylesheet href="xxx.xsl" type="text/xsl"?>

Tuning output with xsl:output and CSS[edit | edit source]

Output declarations[edit | edit source]

So far, HTML output produced would display in a navigator, but is not fully HTML compliant.

xsl:output is an instruction that allows you to fine-tune XSLT translation output in an easy way. Its definition is the following:

<xsl:output
 method = "xml" | "html" | "text"
 version = nmtoken
 encoding = string
 omit-xml-declaration = "yes" | "no"
 standalone = "yes" | "no"
 doctype-public = string
 doctype-system = string
 indent = "yes" | "no"
 media-type = string
/>

Usually, this instruction is inserted in the beginning of the file (after xsl:stylesheet). Below, we firstly provide a few examples that deal with the major HTML dialects (HTML4, XHTML, HTML5). We then add examples that translate from XML to some other XML.

HTML 4 output[edit | edit source]

Example - Output in HTML 4 UTF-8 encoded

 <xsl:output method="html"
     encoding="UTF-8"
     doctype-public="-//W3C//DTD HTML 4.01 Transitional//EN"/>

Example - Output in HTML 4 ISO-latin encoded

 <xsl:output method="html"
     encoding="ISO-8859-1"
     doctype-public="-//W3C//DTD HTML 4.01 Transitional//EN"/>

XHTML 1 output[edit | edit source]

Example - Output in XHTML 1 transitional with a namespace

This is quite more complicated than producing simple HTML

<xsl:stylesheet version="1.0" xmlns:xsl="http://www.w3.org/1999/XSL/Transform"
                 xmlns="http://www.w3.org/1999/xhtml" >
 <xsl:output
    method="xml"
    doctype-system="http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"
    doctype-public="-//W3C//DTD XHTML 1.0 Transitional//EN"
    indent="yes"
    encoding="iso-8859-1" />

 <xsl:template match="recipe">
    <html xmlns="http://www.w3.org/1999/xhtml" >
     <head> ... </head> ... <body> ... </body>
 </xsl:template>

HTML5 and XHTML5 output[edit | edit source]

Since HTML5 is neither SGML nor XML this is a bit more tricky, since HTML5 did not exist when XSLT was defined. You have to choose between elegant XSLT and perfect output. Can't have both ....

Output in HTML 5

<?xml version="1.0"?>
<xsl:stylesheet version="1.0" xmlns:xsl="http://www.w3.org/1999/XSL/Transform">

  <xsl:output method="html" encoding="utf-8" indent="yes" />

  <xsl:template match="root_element">
    <xsl:text disable-output-escaping='yes'>&lt;!DOCTYPE html&gt;</xsl:text>
    <html>
     <head>
       <meta charset="utf-8"/>
       <title>.....</title>
     </head>
     <body>
      .....
     </body>
    </html>
  </xsl:template>
</xsl:stylesheet>

Example - Output in HTML 5 using legacy-compat

<xsl:output
     method="html"
     doctype-system="about:legacy-compat"
     encoding="UTF-8"
     indent="yes" />

 <xsl:template match="/">
   <html>
     <head>
       <meta charset="utf-8"/>
       <title>HTML5 + SVG example</title>
     </head>
     <body>
 .....
         </body>
 </html>

Or output as XML, but you must remove the XML header using omit-xml-declartion="yes". In addition we show how to "print" out the DOCTYPE declaration if you don't like the SYSTEM "legacy-compat" bit. However, this solution does not seem to work with Firefox 19 (client-side). It would be the perfect server-side solution.

<xsl:output
     method="xml"
     omit-xml-declaration = "yes"
     encoding="UTF-8"
     indent="yes" />

 <xsl:template match="/">

   <html>
   <xsl:text disable-output-escaping="yes">
<![CDATA[<!DOCTYPE html>]]>
   </xsl:text>
     <head>
       <meta charset="utf-8"/>
       <title>HTML5 + SVG example</title>
     </head>
     <body>
 .....
         </body>
 </html>

Example - XHTML5 serialisation of HTML5

Frankly, I don't really know how XHTML5 contents are to be served. In principle, since a navigator would have to parse XHTML differently (e.g. find non-HTML5 name spaces), there should be an XML declaration on top in addition to a correct mime-type sent by the server.

<xsl:output
     method="xml"
     omit-xml-declaration = "yes"
     doctype-system="about:legacy-compat"
     encoding="UTF-8"
     indent="yes" />

or with an XML header:

<xsl:output
     method="xml"
     doctype-system="about:legacy-compat"
     encoding="UTF-8"
     indent="yes" />

Or maybe the following, but it won't work with Firefox 19, i.e. the doctype is printed into the body...

<xsl:output
     method="xml"
     encoding="UTF-8"
     indent="yes" />

<xsl:template match="/">
   <xsl:text disable-output-escaping="yes">
<![CDATA[<!DOCTYPE html>]]>
   </xsl:text>
   <html xmlns="http://www.w3.org/1999/xhtml">
     <head>...</head>
     <body>.....</body>
    </html>

Output in any XML language[edit | edit source]

Example - Another XML language

<xsl:output
  method="xml" indent="yes"
  doctype-system="mydtd.dtd" />

Example - Output in SVG 1.1

<?xml version="1.0"?>
<xsl:stylesheet version="1.0"
   xmlns:xsl="http://www.w3.org/1999/XSL/Transform"
   xmlns:xlink="http://www.w3.org/1999/xlink"
   xmlns="http://www.w3.org/2000/svg"
   >

<xsl:output
  method="xml"
  indent="yes"
  standalone="no"
  doctype-public="-//W3C//DTD SVG 1.1//EN"
  doctype-system="http://www.w3.org/Graphics/SVG/1.1/DTD/svg11.dtd"
  media-type="image/svg" />

CSS styling of HTHML output[edit | edit source]

HTML produced with XSLT should be styled with CSS like any other HTML. You could use inline styling, but we recommend associated a CSS style with the HTML output. Associating a CSS stylesheet with HTML output is trivial, if you remember HTML ....

add a link tag in the "head" produced by the template for the root element
.... in the hello.css file you then have to define styles of HTML elements you generate

Example

  <xsl:template match="hello">
   <html>
    <head>
     <link href="hello.css" type="text/css" rel="stylesheet"/>
    </head>
    ......
 </xsl:template match="hello">

Example - cooking

cuisine.xsl inserts cuisine.css into the HTML output

<xsl:template match="recipe">
    <html>
      <head>
        <title>Recipes | Compiled by Rachel Dolores</title>
        <link rel="stylesheet" href="cuisine.css" type="text/css" />
      </head>
      <body>
        <div class="recipe">
          <xsl:apply-templates/>
        </div>
      </body>
    </html>
</xsl:template>

Source:

cuisine.xml - cuisine.xsl - cuisine.css

If things go wrong[edit | edit source]

Frequent problems and remediation[edit | edit source]

Style-sheet error !

Validate the style-sheet in your XML editor
If it provides XSLT support, it will help you find the error spots

XSLT files must be well-formed, e.g. all tags must be closed (including output tags). In case - and this is a very rare situation - you need to output an opening tag that you cannot close in the same template, then you are in trouble. In principle, the following should work, but your browser (e.g. Firefox) may not cope. The code should work fine with a good XSLT processor or IE.

<xsl:text disable-output-escaping="yes">&lt;div&gt;</xsl:text>

XHTML doesn't display in Firefox !

Firefox wants a namespace declaration in the XHMTL produced, do it (see above).

HTML doesn't seem to be right !

Transform the XML document within your XML editor and look at the resulting HTML
You also may validate this output HTML, e.g. with the W3C service !

In the Exchanger XML Editor (IMHO, the best free XML editor for XSLT), use Transform in the menu bar with the following parameters:

Transform->Execute Advanced XSLT
Input = current document
XSLT = Use Processing instructions

Also, in Exchanger, do not forget to select the Saxon 2.0 processor, the others will not work. Read this.

There is various unformatted text in the output !

By default the XSLT processor will copy/paste all contents to the output, even if you did not write a template for a given tag.

Make sure to write a template for each tag, or use information filtering techniques as explained below.
See the XSLT default rule (below)

HTML still doesn't seem to be right !!

Use a XSLT debugger/tracer to understand how your XSLT executes.

The XSLT default rule[edit | edit source]

When you test your first style sheet, it is likely that some of your contents will appear non-formatted.This is due to the fact that XSLT will apply two default rules to all XML elements for which it didn't find a rule.

If you forget to write a rule for a tag (or misspelled tag names) this will happen .....
The XSLT default rules simply copy all contents to the output.

The first rule applies to the document root element and all other elements. It will walk down the tree and do nothing else, i.e. XML tag names are not copied to the output.

 <xsl:template match="*|/">
   <xsl:apply-templates/>
 </xsl:template>

The second rule deals with attributes and element contents. If text is available in a node or attributes, text is copied. This is why you will see your XML contents lumped together in case you forgot to write templates.

 <xsl:template match="text()|@*">
   <xsl:value-of select="."/>
 </xsl:template>

A modified default rule that will help you find missing pieces[edit | edit source]

The following code will override the default rules and will help you find some problems. Simply cut/paste this to your XSLT (but remove it later !)

  <xsl:template match="*">
   <dl><dt>Untranslated node:
       <strong><xsl:value-of select="name()"/></strong></dt>
   <dd>
    <xsl:copy>
      <xsl:apply-templates select="@*"/>
      <xsl:apply-templates select="node()"/>
    </xsl:copy>
  </dd>
  </dl>
  </xsl:template>
 <xsl:template match="text()|@*">
   Contents: <xsl:value-of select="."/>
 </xsl:template>

A short glance at XPath[edit | edit source]

XPath is a very powerful language for extracting information from XML. The XPath specification was published at the same time as XSLT 1.0 (1999). XPath is used in several XML languages besides XSLT, e.g. XQuery. The XPath tutorial - basics article introduces additional features of XPath.

XPath expression are crucial to XSLT programming. For example, they allow to define highly focused XSLT templates or to precise information from an XML file. Technically speaking, within XSLT, all match and select attributes are XPath expressions. In more easy terms, XPath allows to you precisely define what XML element(s) or attribute(s) "you are talking about".

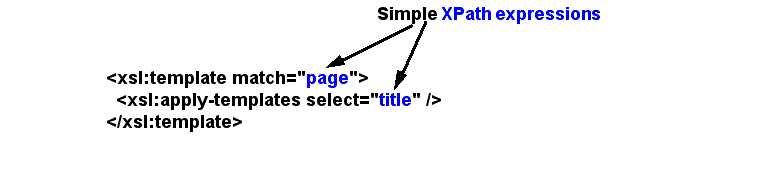

The picture below shows a simple use case.

Simple XPath expressions used in XSLT templates

XSLT beginners don't need to know a lot about XPath, so don't worry right now and simply stick to the idea of writing a XSLT template for each XML tag, as explained before. You should understand that XSLT templates, when applied using the xsl:apply instruction are always executed within a given context, i.e. within the XML element the XSLT processor is currently working with. This is why - for simple XSLT transformations - you can away using XSLT without understanding any XPath.

XPath expressions can be more complicated. Such expressions can be used for value extraction, for writing templates treating a same type of element in different way, for conditional expressions, and so forth. Most XML editors do include an XPath search. Therefore, you can directly test an XPath expression in an editor before using it in an XSLT style sheet.

<xsl:apply-templates select="course/module[position()=1]/section[position()=2]"/>

means: "find rule for 2nd section of the first module of course"

XPath expressions also may include arithmetic and tests

"//Participant[string-length(Nom)>=8]"

means: "return all participant nodes with content of name longer than 7 characters"

Examples of a few simple XPath expressions

These should remind you of CSS selectors

Syntax elemen	(Type of path)	Example path	Example matches
tag	element name	project	<project> ...... </project>
/	separates children	project/title	<project> <title> ... </title>
		/	(root element)
//	descendant	project//title	<project><problem> <title>....</title>
		//title	<racine>... <title>..</title> (any place)
*	"wildcard"	*/title	<bla> <title>..</title> and <bli> <title>...</title>
\|	"or operator	title\|head	<title>...</title> or <head> ...</head>
		\|/\|@	All elements: root, children and attributes
.	current element	.
../	parent element	../problem	<project>
@	attribute name	@id	<xyz id="test">...</xyz>
		@*	Any attribute
element/@attr	attribute of child	project/@id	<project id="test" ...> ... </project>
@attr='type'	type of attribute	list[@type='ol']	<list type="ol"> ...... </list>

Basic value extraction[edit | edit source]

Extracting contents of elements and attributes is important in three simple use cases:

Creating HTML code for links and images
Creating the HTML title element (if you got some kind of main heading in your XML document)
Dealing with data-centric XML that represent data-base like structures

The xsl:value-of instruction[edit | edit source]

xsl:value-of allows to insert the value of an XPath expression, e.g. of some element data

Example - Value-of

Let's assume

that we have an author element somewhere in the XML code and that we would like to put this author information on top of the page
that we have a revision attribute and that we would like to display.

XML fragment

<page>
  <title>Hello</title>
  <content revision="10 ">
      Here is some content</content>
  <comment>Written by <author>DKS</author> </comment>
</page>

XSLT rules

<xsl:template match="page">
     <p><xsl:value-of select="comment/author" /></p>
 </xsl:template>

 <xsl:template match="content">
     <P>Revision number: <xsl:value-of select="@revision" /></P>
     <xsl:apply-templates/>
</xsl:template>

A word of warning. Make a distinction between extracting an attribute value and testing for the existence of an attribute value

Good:

 <xsl:template match="category[@text='Label']">
    <xsl:value-of select=".//cell/@text"/>
  </xsl:template>

Bad:

 <xsl:template match="category[@text='Label']">
    <xsl:value-of select=".//cell[@text]"/>  <!-- not working. It's just a test -->
  </xsl:template>

Inserting a value inside an HTML attribute string[edit | edit source]

If you want to insert information inside an HTML attribute value, things get a little bit tricky, since HTML value attributes are quoted and usually information within quotes is not interpreted. Read on ...

XSLT special syntax for inserting values into quoted attribute values

 {....}

This {...} construct is the equivalent of < xsl:value-of select="..."/> which can not be used here !!

Example - Building an HTML href tag from an XML email attribute

We will use both the {...} and the value-of select="" constructs.

The XML fragment

 <contact-info email="test@test">

The XSLT rule

 <xsl:template match="contact-info">

   <a href="mailto:{@email}"><xsl:value-of select="@email"/></a>

  </xsl:template>

The result

 <a href="mailto:test@test">test@test</a>

Producing HTML Links[edit | edit source]

Think !! XSLT does not understand HTML. All you have to do is to translate your XML to HTML and not try to do any dark magic ....

(1) Links defined as simple element contents

XML example:

 <info>http://test.com/test/</info>

XSLT solution, take 1 - Display "Click here" as link text

 <xsl:template match="info">
  <a href="{.}">Click here</a>
 </xsl:template>

XSLT solution, take 2 - displays the URL as link text

 <xsl:template match="info">
  <a href="{.}"><xsl:value-of select="."/> </a>
 </xsl:template>

(2) Links defined with two tags

XML example:

 <address>
  <name>TECFA</name>
  <url>http://tecfa.unige.ch</url>
  </address>

XSLT solution:

 <xsl:template match="address">
   <a href="{url}"> <xsl:value-of select="name"/> </a>
 </xsl:template>

(3) Links defined like an HTML link

XML Example:

 <link url="http://tecfa.unige.ch">TECFA</link>

XSLT solution:

 <xsl:template match="link">
   <a href="{@url}"> <xsl:value-of select="."/> </a>
 </xsl:template>

XML Example exactly like in HTML

<a href="http://tecfa.unige.ch">TECFA</a>

XSLT solution:

 <xsl:template match="a">
   <a href="{@href}"> <xsl:value-of select="."/> </a>
 </xsl:template>

Example files, look at the source of each:

Source code: html-links.xml - html-links.xsl
More examples:links.xml - links.xsl

Dealing with pictures[edit | edit source]

There is no special "magic" for dealing with images, links, style sheets etc. Simply look at your XML and figure out how to translate into equivalent HTML (or whatever else)

The following example demonstrates the use of value extraction. Several other solutions than the one we demonstrate below exist ...

Example - Dealing with pictures

File images.xml

 <?xml version="1.0"?>
 <?xml-stylesheet href="images.xsl" type="text/xsl"?>
 <page>
  <title>Hello Here are my images</title>
  <list>
    <!-- pictures are either contents or attribute values of elements -->
   <image>dolores_001.jpg</image>
   <image>dolores_002.jpg</image>

   <image3 source="dolores_002.jpg">Recipe image</image3>
  </list>
  <comment>Written by DKS.</comment>
 </page>

File images.xsl

 <?xml version="1.0"?>
 <xsl:stylesheet version="1.0" xmlns:xsl="http://www.w3.org/1999/XSL/Transform">
 <xsl:template match="page">
   <html> <head> <title> <xsl:value-of select="title"/> </title> </head>
    <body bgcolor="#ffffff">
     <xsl:apply-templates/>
    </body>
   </html>
  </xsl:template>

  <xsl:template match="title">
   <h1 align="center"> <xsl:apply-templates/> </h1>
  </xsl:template>

  <!-- pictures are either contents or attribute values of elements -->
  <xsl:template match="list">
   Images are element contents, apply a template to all image elements:
   <xsl:apply-templates select="image"/>
   Images are attribute values of an element, we do it differently:
   <xsl:apply-templates select="image3"/>
  </xsl:template>

  <xsl:template match="image">
    <p> <img src="{.}"/> </p>
  </xsl:template>

  <xsl:template match="image3">
    <p>
      <img src="{@source}"/><br/>
      <xsl:value-of select="."/>  <!-- insert a caption -->
    </p>
  </xsl:template>


  <xsl:template match="comment">
   <hr/> <i><xsl:apply-templates/></i>
  </xsl:template>

 </xsl:stylesheet>

Real life example (examine the source of both files):

Information filtering and dealing with position[edit | edit source]

Information filtering[edit | edit source]

Instead of letting the XSLT processor select and apply templates (that we also call rules here) in "natural order", you can define which templates should by applied within a given context.

Example - Displaying the hello text without content

In the template for the root element, we only apply templates for the "title" and the "comment" element.

     <xsl:apply-templates select="title"/>
     <xsl:apply-templates select="comment"/>
The XSLT processor executing the template for the ''page'' element, will first try to find and apply a template for the "''title''" element, and after that, for the "''comment''" element.
That implies that information within a ''content'' tag will not be displayed (since we don't let the processor find templates by itself)

Hello2.xml

 <?xml version="1.0"?>
  <?xml-stylesheet href="hello2.xsl" type="text/xsl"?>
   <page>
    <title>Hello</title>
    <content>Here is some content</content>
    <comment>Written by DKS.</comment>
   </page>

Hello2.xsl

 <?xml version="1.0"?>
 <xsl:stylesheet version="1.0" xmlns:xsl="http://www.w3.org/1999/XSL/Transform">

 <xsl:template match="page">
   <html> <head> <title> <xsl:value-of select="title"/> </title> </head>
    <body bgcolor="#ffffff">
     <!-- Steering rule execution below -->
     <xsl:apply-templates select="title"/>
     <xsl:apply-templates select="comment"/>
    </body>
   </html>
  </xsl:template>

  <xsl:template match="title">
   <h1 align="center"> <xsl:apply-templates/> </h1>
  </xsl:template>

  <xsl:template match="comment">
   <hr/> <i><xsl:apply-templates/></i>
  </xsl:template>

 </xsl:stylesheet>

Hello2.html, i.e. the resulting HTML file

 <!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.0//EN""http://www.w3.org/TR/REC-html40/strict.dtd">
 <html>
  <head>
    <title>Hello</title>
  </head>
  <body bgcolor="#ffffff">
    <h1 align="center">Hello</h1>
    <hr><i>Written by DKS</i>
  </body>
 </html>

Working with positions[edit | edit source]

Imagine that you would like to apply different templates for the same type of element, according to its position. A typical use case are comma separated items. The last item should finish with a "."

Simple comma-separated list

XML File: ingredient-list1.xml (live example)

<?xml version="1.0" ?>
<?xml-stylesheet href="ingredient-list1.xsl" type="text/xsl"?>
.....
  <ingredients>
    <item>6 sliced caterpillars</item>
    <item>1 shrivelfig</item>
    <item>4 rat spleens</item>
    <item>minced daisy roots</item>
    <item>5 drops of leech juice</item>
  </ingredients>
.....

XSLT File ingredient-list1.xsl (full source code)

The following code fragment demonstrate that we define two rules for the item element. By default the first one is applied. Since the XSLT processor only will apply one rule per element and also the most complex one, the second rule is chosen for the last element.

 <xsl:template match="ingredients">
   <p>
     <b>Ingredients:</b> <xsl:apply-templates />
   </p>
 </xsl:template>

 <xsl:template match="item">
   <xsl:apply-templates/>,
 </xsl:template>

 <xsl:template match="item[position()=last()]">
   <xsl:apply-templates/>.
 </xsl:template>

Numbering

The XPath position() function also can be used to number elements. However, in order to make this work, we must first strip out whitespace. Each Whitespace between elements is also counted.

The XML source code is the same as above (file ingredient-list2.xml)

ingredient-list2.xsl (full XSLT source code)

  <!-- must remove white spaces within the list element,
      otherwise numbering will not work -->
 <xsl:strip-space elements="ingredients"/>

 <xsl:template match="ingredients">
   <p>
     <b>Ingredients:</b> <xsl:apply-templates />
   </p>
 </xsl:template>

 <xsl:template match="item">
   (<xsl:value-of select="position()"/>)
   <xsl:apply-templates />,
 </xsl:template>

 <xsl:template match="item[position()=last()]">
   (<xsl:value-of select="position()"/>)
   <xsl:apply-templates />.
 </xsl:template>

numbering using a selection instruction

You also could obtain the same result by using the choose or if selection instructions. However, we believe that one should stick to simple data-driven rule-based programming for simple translation problems. Conditional programming constructs only should be used in complex functional programming code...

ingredient-list3.xsl (full XSLT source code)

 ....
 <xsl:template match="item">
   (<xsl:value-of select="position()"/>)
   <xsl:apply-templates/>
   <xsl:choose>
     <xsl:when test="position() != last()">
       <xsl:text>, </xsl:text>
     </xsl:when>
     <xsl:otherwise>.</xsl:otherwise>
   </xsl:choose>
 </xsl:template>
 ....

Sorting[edit | edit source]

Sometimes you wish to sort elements. This should encourage you to study what I call XSLT level 2 (programming constructs).

This example uses a looping construct. xsl:for-each will collect all items that match the XPath expression in the select attribute into a so-called node set. It then will treat element after element in this node set. In addition, you could add a sorting statement (as shown below in the code).

    <xsl:for-each select="participant">
....
    </xsl:for-each>

XML

 <?xml version="1.0"?>
 <?xml-stylesheet href="participants.xsl" type="text/xsl"?>
  <participants>
   <participant>
    <FirstName>Daniel</FirstName>
    <qualification>8</qualification>
    <description>Daniel will be the tutor</description>
    <FoodPref picture="dolores_001.jpg">Sea Food</FoodPref>
   </participant>
   <participant>
    <FirstName>Jonathan</FirstName>
    <qualification>5</qualification>
    <FoodPref picture="dolores_002.jpg">Asian</FoodPref>
   </participant>
   <participant>
    <FirstName>Bernadette</FirstName>
    <qualification>8</qualification>
    <description>Bernadette is an arts major</description>
   </participant>
    <participant>
    <FirstName>Nathalie</FirstName>
    <qualification>2</qualification>
   </participant>
  </participants>

XSL

 <?xml version="1.0" encoding="ISO-8859-1" ?>
 <xsl:stylesheet version="1.0" xmlns:xsl="http://www.w3.org/1999/XSL/Transform">
 <xsl:output method="html"
    encoding="ISO-8859-1"
    doctype-public="-//W3C//DTD HTML 4.01 Transitional//EN"/>

 <xsl:template match="/">
  <html>
    <head>
      <title>Participants List</title>
    </head>
    <body bgcolor="#ffffff">
      <h1>Participants list</h1>
      Shows how to build a simple sorted table with XSLT.
      <xsl:apply-templates/>
    </body>
  </html>
 </xsl:template>

 <xsl:template match="participants">
    <table border="2" cellspacing="1" cellpadding="6">
    <tr><th>Qualification</th>
        <th>First Name</th>
        <th>Description</th>
        <th>Food Picture</th>
     </tr>
     <xsl:for-each select="participant">
       <xsl:sort select="qualification"/>
      <tr>
      <td><xsl:value-of select="qualification"/></td>
      <td><xsl:value-of select="FirstName"/></td>
      <td><xsl:value-of select="description"/></td>
      <td><xsl:if test="FoodPref/@picture"><img src="{FoodPref/@picture}"/></xsl:if></td>
      </tr>
     </xsl:for-each>
    </table>
 </xsl:template>

 </xsl:stylesheet>

For some more XSLT filtering tricks, read XPath tutorial - basics. You could, for instance, learn how to write custom rules for the same element sitting in different positions...

Creating an internal table of contents[edit | edit source]

Depending on your XML structure and depending on whether you would like to create a nested TOC, this task can be fairly simple or fairly complex. You will find many examples online, e.g. on stackoverflow.

The task itself is fairly easy. For the HTML you will have to

create internal anchors (<a name="....">...</a>)
then create the table of contents (TOC) with links that point to these anchors, using (<a href="#....">...</a>)

If you code manually each title with a specific attribute, the solution is simple, e.g. like inserting pictures. However, we plan to do this fully or semi-automatically. Since the titles you want to display are often somewhat "down" in the XML, you will have to learn how to write simple XPath expressions that will allow templates to be triggered. E.g. the template for generating the TOC is typically run from the top-level template.

[This requires further explanations. For the moment, the documentation is the code below.... plus textbook chapters or help on the Internet - Daniel K. Schneider (talk) 16:09, 28 September 2015 (CEST)]

Creating a TOC for elements that have a unique ID tag[edit | edit source]

This example is slightly more complex than the base example. Titles sit underneath a chapter element and not each of these will have an id tag. That means that we will have to write templates that only deal with titles that are a child element of chapter and that do have an toc_id attribute. The Xpath expression for filtering this is:

Live code:

The XML:

<?xml version="1.0"?>
<?xml-stylesheet href="table-of-contents-ids.xsl" version="1.0" type="text/xsl"?>
<document>
  <chapter>
    <title toc_id="intro">Introduction</title>
    <para>In the old times, when it was still of some use to wish for the thing one wanted, there lived a King whose daughters were all handsome, but the youngest was so beautiful that the sun himself, who has seen so much, wondered each time he shone over her because of her beauty. Near the royal castle there was a great dark wood, and in the wood under an old linden-tree was a well; and when the day was hot, the King's daughter used to go forth into the wood and sit by the brink of the cool well, and if the time seemed long, she would take out a golden ball, and throw it up and catch it again, and this was her favourite pastime</para>
  </chapter>

  <chapter>
    <title toc_id="old">An old story</title>
    <para>Now it happened one day that the golden ball, instead of falling back into the maiden's little hand which had sent it aloft, dropped to the ground near the edge of the well and rolled in. The king's daughter followed it with her eyes as it sank, but the well was deep, so deep that the bottom could not be seen. Then she began to weep, and she wept and wept as if she could never be comforted. And in the midst of her weeping she heard a voice saying to her</para>
  </chapter>

  <chapter>
    <title toc_id="new">An new story</title>
    <para>New stories are different</para>
    <section>
      <title>Introduction</title>
      <para>Upon a time ....</para>
      <title>Introduction</title>
      <para>... there was a young prince</para>
    </section>
  </chapter>

  <chapter>
    <title>Credits</title>
    <para>Excerpts from http://www.gutenberg.org/files/19068/19068-h/19068-h.htm#illus-043</para>
  </chapter>
</document>

The XSLT:

<?xml version="1.0" ?>
<xsl:stylesheet version="1.0" xmlns:xsl="http://www.w3.org/1999/XSL/Transform">

   <xsl:template match="document">
    <html>
      <head>
        <title> <xsl:value-of select="title"/>
      </title>
     </head>
     <body bgcolor="#ffffff">
       <!-- generate the TOC -->
       <div style="float:right;background-color:yellow;margin:10px; padding:5px">
       <p>Contents:</p>
       <ul><xsl:apply-templates select="chapter/title" mode="toc"/></ul>
       </div>

       <!-- trigger the templates that deal with all the rest -->
       <xsl:apply-templates/>
     </body>
    </html>
   </xsl:template>

   <!-- creates an entry for the TOC -->
   <!-- this will only work for titles that are children of chapter element and that have a toc_id -->
   <xsl:template match="chapter/title[@toc_id]" mode="toc">
    <li> <a href="#{@toc_id}"><xsl:value-of select="."/></a> </li>
   </xsl:template>

   <xsl:template match="chapter">
     <xsl:apply-templates/>
     <hr width="70%"/>
   </xsl:template>

   <!-- will insert a name attribute for each element that has a toc_id -->
   <xsl:template match="chapter/title[@toc_id]">
     <h1 style="color:blue;text-align:center">
       <a name="{@toc_id}"><xsl:apply-templates/></a>
     </h1>
   </xsl:template>

   <!-- if the toc_id is missing then we do not insert a toc_id -->
   <xsl:template match="chapter/title[not(@toc_id)]">
    <h1 style="color:green;text-align:center;"> <xsl:apply-templates/> </h1>
   </xsl:template>

   <xsl:template match="section/title">
    <h2 align="center"> <xsl:apply-templates/> </h2>
   </xsl:template>

   <xsl:template match="para">
    <p align="center"> <xsl:apply-templates/> </p>
   </xsl:template>

</xsl:stylesheet>

Creating a TOC for all elements of a given type[edit | edit source]

The next example will deal with a text that doesn't give ID's to titles, i.e. a more frequent situation. It will need a more sophisticated Xpath expression to create a unique ID for each title. We chose to generate ids that use the string "POS_" plus the chapter's position.

Live code:

The XML:

<?xml version="1.0"?>
<?xml-stylesheet href="table-of-contents-sans-id.xsl" version="1.0" type="text/xsl"?>
<document>
  <chapter>
    <title>Introduction</title>
    <para>In the old times, when it was still of some use to wish for the thing one wanted, there lived a King whose daughters were all handsome, but the youngest was so beautiful that the sun himself, who has seen so much, wondered each time he shone over her because of her beauty. Near the royal castle there was a great dark wood, and in the wood under an old linden-tree was a well; and when the day was hot, the King's daughter used to go forth into the wood and sit by the brink of the cool well, and if the time seemed long, she would take out a golden ball, and throw it up and catch it again, and this was her favourite pastime</para>
  </chapter>

  <chapter>
    <title>An old story</title>
    <para>Now it happened one day that the golden ball, instead of falling back into the maiden's little hand which had sent it aloft, dropped to the ground near the edge of the well and rolled in. The king's daughter followed it with her eyes as it sank, but the well was deep, so deep that the bottom could not be seen. Then she began to weep, and she wept and wept as if she could never be comforted. And in the midst of her weeping she heard a voice saying to her</para>
  </chapter>

  <chapter>
    <title>An new story</title>
    <para>New stories are different</para>
    <section>
      <title>Introduction</title>
      <para>Upon a time ....</para>
      <title>Introduction</title>
      <para>... there was a young prince</para>
    </section>
  </chapter>

  <chapter>
    <title>Credits</title>
    <para>Excerpts from http://www.gutenberg.org/files/19068/19068-h/19068-h.htm#illus-043</para>
  </chapter>
</document>

The XSLT:

<?xml version="1.0" ?>
<xsl:stylesheet version="1.0" xmlns:xsl="http://www.w3.org/1999/XSL/Transform">

   <xsl:template match="document">
    <html>
      <head>
        <title> <xsl:value-of select="title"/>
      </title>
     </head>
     <body bgcolor="#ffffff">
       <!-- generate the TOC -->
       <div style="float:right;background-color:yellow;margin:10px; padding:5px">
       <p>Contents:</p>
       <ul><xsl:apply-templates select="chapter/title" mode="toc"/></ul>
       </div>

       <!-- trigger the templates that deal with all the rest -->
       <xsl:apply-templates/>
     </body>
    </html>
   </xsl:template>

   <!-- creates an entry for the TOC -->
   <!-- this will only work for titles that are children of chapter element and that have a toc_id -->
   <xsl:template match="chapter/title" mode="toc">
    <li> <a href="#POS_{position()}"><xsl:value-of select="."/></a> </li>
   </xsl:template>

   <xsl:template match="chapter">
     <xsl:apply-templates/>
     <hr width="70%"/>
   </xsl:template>

   <!-- will insert a name attribute for each high level title. -->
   <!-- Generation of position ID is a bit hairy. We count the position of the parent element (chapter).
        If the titles were just children of root, we could have used position() -->
   <xsl:template match="chapter/title">
     <h1 style="color:blue;text-align:center">
       <a name="POS_{count(../preceding-sibling::*)+1}"><xsl:apply-templates/></a>
     </h1>
   </xsl:template>

   <xsl:template match="section/title">
    <h2 align="center"> <xsl:apply-templates/> </h2>
   </xsl:template>

   <xsl:template match="para">
    <p align="center"> <xsl:apply-templates/> </p>
   </xsl:template>

</xsl:stylesheet>

Creating a TOC for a simple XML structure[edit | edit source]

A simple flat XML File

<?xml version ="1.0"?>
<?xml-stylesheet href="toc.xsl" type="text/xsl"?>
<text>
	<description>Description</description>
	<books>List of books that should be much longer</books>
	<comment>Comments</comment>
</text>

The XSL

<?xml version="1.0" encoding="UTF-8"?>

<xsl:stylesheet xmlns:xsl="http://www.w3.org/1999/XSL/Transform" version="1.0">
	<xsl:template match="text">
		<html>
			<body>
		Table of contents:
		<ul>
			<xsl:apply-templates select="description|books|comment" mode="toc"/>
		</ul>
		Contents are below:
		<xsl:apply-templates/>
		</body>
		</html>
	</xsl:template>

<xsl:output
     method="html"
     doctype-system="about:legacy-compat"
     encoding="UTF-8"
     indent="yes" />

   <xsl:template match="description|books|comment" mode="toc">
    <li> <a href="#POS_{local-name(.)}"><xsl:value-of select="local-name(.)"/></a> </li>
   </xsl:template>

   <xsl:template match="description|books|comment">
   <p><xsl:number/>
   <a name="POS_{local-name(.)}"></a>
   <xsl:apply-templates/>
   </p>
   	</xsl:template>

</xsl:stylesheet>

Exercise[edit | edit source]

Here is a simple XML file and an unfinished XSLT Stylesheet. Try to complete it.

XML (copy/paste)

<?xml version="1.0" encoding="UTF-8"?>
 <?xml-stylesheet href="cooking.xsl" type="text/xsl"?>

 <recipe>
     <recipe_head>
	<recipe_name>Cold Salmon in Creamy Spiced Sauce</recipe_name>
 	<recipe_author>Hilaire Walden</recipe_author>
	<meal_type>Fish and Shellfish</meal_type>
     </recipe_head>

     <recipe_body>
	  	<ingredients>
	  	  <ingredient>1/2 teaspoon finely crushed cumin seeds</ingredient>
	  	  <ingredient>1 teaspoon chilli powder</ingredient>
	  	  <ingredient>salt and freshly ground black pepper</ingredient>
	  	  <ingredient>2 tablespoons olive oil</ingredient>
	  	  <ingredient>2 cloves garlic, crushed</ingredient>
	  	  <ingredient>1.25 cm (1/2 in) fresh ginger root, finely chopped</ingredient>
	  	  <ingredient>4 pieces salmon fillet, skinned</ingredient>
	  	  <ingredient>125 ml (4 fl oz / 1/2 cup) double (heavy) cream</ingredient>
	  	  <ingredient>250 ml (8 fl oz / 1 cup) thick plain yogurt</ingredient>
	  	  <ingredient>large pinch of saffron threads, toasted and crushed</ingredient>
  		  <ingredient>seeds from 6 cardamom pods, toasted and finely crushed</ingredient>
	  	  <ingredient>salt</ingredient>
  		  <ingredient>coriander (cilantro) to garnish</ingredient>
	  	</ingredients>
  	<directions>
	  <direction>Mix together the cumin seeds, chilli powder and pepper and rub into the fish.</direction>
	<direction>Heat the oil in a frying pan, add the garlic and ginger and heat until they sizzle.</direction>
	<direction>Add the salmon fillets and fry until they start to colour (about 15-20 seconds on each side).</direction>
	<direction>Stir in the cream, yogurt, saffron, cardamom and salt.</direction>
	<direction>Adjust the heat so that the sauce is just bubbling and cook,
 turning the fish once, until the flesh just flakes when tested
 with the point of a sharp knife (about 3-4 minutes each side).
        </direction>
	<direction>Transfer the fish to a shallow dish.
 Boil the sauce until it has reduced and thickened, pour over the fish and leave to cool.</direction>
        <direction>Cover the dish and chill until 15-20 minutes before serving.</direction>
	<direction>Garnish with coriander (cilantro).</direction>
	</directions>
     </recipe_body>

     <recipe_footer>
     <serving>4</serving>
     <preparation_time>15 minutes</preparation_time>
     </recipe_footer>
     <document_info>
  		<document_author>Hilaire Walden</document_author>
  		<date_updated>21/01/07</date_updated>
  		<origin>Easy to Cook, Hot &amp; Spicy</origin>
  	</document_info>
  </recipe>

XSLT (not complete)

<?xml version="1.0"?>
 <xsl:stylesheet version="1.0"
  xmlns="http://www.w3.org/1999/xhtml"
  xmlns:xsl="http://www.w3.org/1999/XSL/Transform">

 <xsl:output
   method="xml"
   doctype-system="http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"
   doctype-public="-//W3C//DTD XHTML 1.0 Transitional//EN"
   indent="yes"
   encoding="iso-8859-1" />

  <xsl:template match="recipe">
   <html xmlns="http://www.w3.org/1999/xhtml">
    <head>
      <title> <xsl:value-of select="title"/> </title>
      <link href="cooking-html.css" type="text/css" rel="stylesheet"/>
    </head>
    <body bgcolor="#ffffff">
     <xsl:apply-templates/>
    </body>
   </html>
  </xsl:template>

  <xsl:template match="recipe_head">
    <xsl:apply-templates/>
  </xsl:template>

  <xsl:template match="recipe_body">
    <xsl:apply-templates/>
  </xsl:template>

  <xsl:template match="recipe_name">
   <h1 align="center"> <xsl:apply-templates/> </h1>
  </xsl:template>

  <xsl:template match="recipe_author">
   <p align="center"> <xsl:apply-templates/> </p>
  </xsl:template>

  <xsl:template match="meal_type">
   <p align="center"> Type: <xsl:apply-templates/> </p>
  </xsl:template>

  <xsl:template match="ingredients">
   <h2 align="center">Ingredients</h2>
   <ol>
     <xsl:apply-templates/>
   </ol>
   </xsl:template>

  <xsl:template match="ingredient">
   <li> <xsl:apply-templates/> </li>
  </xsl:template>

  <xsl:template match="directions">
   <h2 align="center">Directions</h2>
   <ol>
     <xsl:apply-templates/>
   </ol>
   </xsl:template>

  <xsl:template match="direction">
   <li> <xsl:apply-templates/> </li>
  </xsl:template>

  <xsl:template match="recipe_footer">
   <h2 align="center">More info</h2>
    <p>This stylesheet is unfinished ... some rules are missing.
      This is why you can't see properly formatted contents below ....
    </p>
   <xsl:apply-templates/>
   </xsl:template>

 </xsl:stylesheet>

Dealing with namespaced XML[edit | edit source]

If your XML contains namespaces, even just a default namespace, your XSL templates must include these ! Alternatively, you could use the *[name()='element_name'] construct instead of prefix:element_name.

You must prefix each element name, and declare the namespace e.g. like this (see the oms: prefix). Be warned, the deficient XSLT engine of your navigator may not be able to display this. Transform in your editor, or use a server-side solution.

<xsl:stylesheet
    xmlns="http://www.ibm.com/software/analytics/spss/xml/oms"
    xmlns:oms="http://www.ibm.com/software/analytics/spss/xml/oms"
    xmlns:xsl="http://www.w3.org/1999/XSL/Transform" version="1.0">

  <xsl:output method="html" indent="yes"/>

  <xsl:template match="oms:outputTree">
    <html>
      <head>
	<title>SPSS Codebook</title>
      </head>
      <body bgcolor="#ffffff">
	<xsl:apply-templates/>
      </body>
    </html>
  </xsl:template>

Learn more in the XSLT for compound documents tutorial.

Last advice and links[edit | edit source]

Links

See XSLT (more tutorials, software, online services, etc.)

Moving on

Advice

Ignore textbooks that start by explaining how to use the for-each construct.
You can do a lot just with templates (rules) !
Try to complete the example problem above. In my experience, people absolutly don't get the mechanism of this kind of data-driven rule-based programming before they really tried understanding and completing an example. (This includes programmers that only have been trained in procedural languages. Btw, those programmers really freak out when they have to learn writing functional programming code with XSLT and cope with the fact that there no variables as they understand them in XSLT).
Learn how to use an XSLT debugger / tracing program. E.g. use the Exchanger XML Editor, version 3.3 or better, which includes a debugger. This editor works fine on Windows 7, Ubuntu 10.x, but not as well on Mac OsX it seems.
Look up other tutorials, some are listed in the XSLT article.
An excellent reference guide can be found on ZVON: "http://zvon.org/comp/r/ref-XSLT_1.html" and "http://zvon.org/comp/r/ref-XSLT_2.html"
If your Xpath expressions don't work, check if your XML includes namespaces. If so, adapt the XSL templates (see above) !!
