Payload Assist Module

Short description: Single-stage solid-fueled booster stage

File:PAM-D 1920x1080.ogv

The Payload Assist Module (PAM) is a modular upper stage designed and built by McDonnell Douglas (now Boeing), using Thiokol Star-series solid propellant rocket motors. The PAM was used with the Space Shuttle, Delta, and Titan launchers and carried satellites from low Earth orbit to a geostationary transfer orbit or an interplanetary course. The payload was spin stabilized by being mounted on a rotating plate.^[1] Originally developed for the Space Shuttle, different versions of the PAM were developed:

PAM-A (Atlas class), development terminated; originally to be used on both the Atlas and Space Shuttle, designed for satellites up to 4,400 lb (2,000 kg)
PAM-D (Delta class), uses a Star-48B rocket motor, designed for satellites up to 2,750 lb (1,250 kg)^[2]
PAM-DII (Delta class), uses a Star-63 rocket motor, designed for satellites up to 4,150 lb (1,880 kg)^[2]
PAM-S (Special) as a kick motor for the space probe Ulysses^[2]

The PAM-D module, used as the third stage of the Delta II rocket, was the last version in use. As of 2018, no PAM is in active use on any rockets.

2001 re-entry incident

On January 12, 2001, a PAM-D module re-entered the atmosphere after a "catastrophic orbital decay".^[3] The PAM-D stage, which had been used to launch the GPS satellite 2A-11 in 1993, crashed in the sparsely populated Saudi Arabian desert, where it was positively identified.^[3]

Gallery

PAM-D stage in assembly
SBS-3 satellite with PAM-D stage being launched from Space Shuttle Columbia

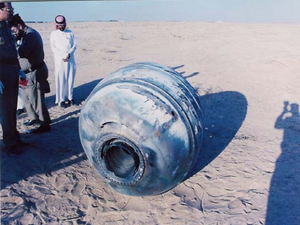

Saudi officials inspect a PAM-D module that re-entered the atmosphere in 2001
SATCOM KU-2 attached to a PAM-DII is being released from the cargo bay of the Space Shuttle Orbiter Atlantis during STS-61B
Ulysses is mated with the PAM-S

References

↑ "Payload Assist Module (PAM)". Global Security. http://www.globalsecurity.org/space/systems/pam.htm.
↑ ^2.0 ^2.1 ^2.2 Krebs, Gunter D.. "PAM-D, PAM-D2, PAM-S". https://space.skyrocket.de/doc_stage/pam-d.htm.
↑ ^3.0 ^3.1 "PAM-D Debris Falls in Saudi Arabia". The Orbital Debris Quarterly News (NASA Johnson Space Center) 6 (2): 1. April 2001. https://orbitaldebris.jsc.nasa.gov/quarterly-news/pdfs/odqnv6i2.pdf.

External links

Payload Assist Module at the NASA Shuttle Reference Manual
Payload Assist Module at GlobalSecurity.org
