Bone Metastasis

Bone metastasis
3D rendered CT scan of bone metastases of the hip bone, in a 60 year old woman with parotid gland cancer. Large lesions are seen on the hip on the more distant side. Involvement of the spine has caused a compression fracture.
Specialty	Oncology
Symptoms	Bone pain
Complications	Break in bone
Frequency	Commonest type of bone cancer in older people

Bone metastases are cancerous bone tumors that arise in bone due to spread from a cancer originating from somewhere else in the body.^[1][2] Any bone can be affected and pain over the involved bone is typically the first symptom.^[1]

Cancers that spread to bone include cancers of the lung, breast, thyroid, kidney and prostate.^[3] In younger people, spread to bone is more likely from cancers involving the nervous system, kidneys and soft tissue.^[1]

Diagnosis is by radiological tests. These may show one of three types of spread; lytic, sclerotic or a combination of both. The preferred tests are bone scintigraphy and FDG PET. An alternative is MRI of the whole body.^[1]

They are generally more common than bone tumors that originate from bone itself such as osteosarcoma, chondrosarcoma, and Ewing's sarcoma, which are rare.^[4]

Signs and symptoms[edit | edit source]

Any bone can be affected and pain over the involved bone is typically the first symptom.^[1] The pain can be severe, and characterized by a dull, constant ache with periodic spikes of incident pain.^[5] Bone fractures are common presentations.^[1]

Other symptoms and signs include spinal cord compression, hypercalcemia, anemia, spinal instability, decreased mobility, and rapid degradation in the quality of life .^[6][7] Even under controlled pain management, breakthrough pain can occur rapidly, without warning, several times a day.^[8] Pain may be worse at night and partially relieved by activity.^[9] Metastases to weightbearing bones may become symptomatic early in the course of disease as compared to metastases to the flat bones of the rib or sternum.^[9]

Causes[edit | edit source]

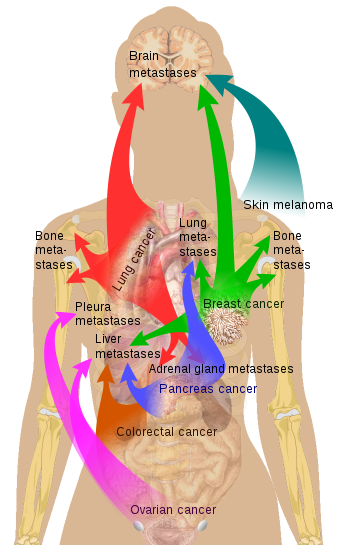

Main sites of metastases for some common cancer types, with lung and breast routes to bones shown at shoulder level. Prostate cancer, the third major source,^[10] is not shown because of female model. Primary cancers are denoted by "...cancer" and their main metastasis sites are denoted by "...metastases".^[11]

Bone metastases are caused by spread from a cancer originating from somewhere else in the body.^[1] Cancers that spread to bone include cancers of the lung, breast, thyroid, kidney and prostate.^[3] In younger people, spread to bone is more likely from cancers involving the nervous system, kidneys and soft tissue.^[1][10] Particularly in prostate cancer, bone metastases tend to be the only site of metastasis.^[5]

Mechanism[edit | edit source]

The way in which a cancer spreads from one part of the body to bone is via the blood.^[1]

Acidosis is the increased acidity in a given location, whether it is blood, urine, or tissues. Osteoclasts generate extracellular protons, lowering the pH of the extracellular matrix (ECM) around the osteoclast to approximately 4.5.^[12] Nociceptors in the bone trigger a pain response in the brain in response to this acidosis.^[13] It is thought that this is the primary source of the dull, chronic pain experienced by patients with bone metastasis.^{[citation needed]}

The uncoupled regulation of the osteoclasts and osteoblasts leads to malformation of the bone.^[5] Malformed bones are unable to withstand the normal mechanical stresses placed on them in day-to-day activity, leading to fractures, spinal compression, and spinal instability. Malformed bones may also mechanically trigger pain receptors both within the bone and in the surrounding tissue.^{[citation needed]}

Diagnosis[edit | edit source]

Bone metastasis is diagnosed by radiological tests. These may show one of three types of spread; lytic, sclerotic or mixed. The preferred tests are bone scintigraphy and FDG PET. An alternative is MRI of the whole body.^[1]

A CT scan can detect bone metastases before becoming symptomatic in patients diagnosed with tumors with risk of spread to the bones. Even sclerotic bone metastases are generally less radiodense than enostoses, and it has been suggested that bone metastasis should be the favored diagnosis between the two for bone lesions lower than a cutoff of 1060 Hounsfield units (HU).^[14]

•

  CT scan chest: Bone cancer in back and ribs, spread from lung cancer.

•

  X-ray: Bone cancer in hip, spread from prostate cancer.

•

  X-ray: Bone cancer in hip, spread from breast cancer.

•

  CT scan: Parotid gland cancer spread to hip.

•

  Bone scintigraphy: Bone cancer spread from breast cancer.

Types of lesions[edit | edit source]

Under normal conditions, bone undergoes a continuous remodeling through osteoclast-mediated bone resorption and osteoblast-mediated bone deposition.^[10] These processes are normally tightly regulated within bone to maintain bone structure and calcium homeostasis in the body. Disregulation of these processes by tumor cells leads to either osteoblastic or osteolytic lesions, reflective of the underlying mechanism of development.^[10] Typically, osteolytic metastases are more aggressive than osteoblastic metastases, which have a slower course. Regardless of the phenotype, though, bone metastases show osteoclast proliferation and hypertrophy.^[15]

Osteoblastic lesions include prostate cancer, carcinoid, small cell lung cancer, Hodgkin lymphoma, and medulloblastoma.^[16] Osteolytic lesions include cancer of lung, thyroid, and kidney. Others are Multiple myeloma, Melanoma, Non-Hodgkin lymphoma and Langerhans cell histiocytosis.^[16] Bone cancers from breast, testes, ovaries, gastrointestinal tract and skin are usually mixed.^[16]

Treatment[edit | edit source]

The goals of the treatment for bone metastases include pain control, prevention and treatment of fractures, maintenance of patient function, and local tumor control.^[9] Treatment options are determined by multiple factors, including performance status, life expectancy, impact on quality of life, and overall status of clinical disease.^{[citation needed]}

The World Health Organization's pain ladder was designed for the management of cancer-associated pain, and mainly involves various strength of opioids. Mild pain or breakthrough pain may be treated with nonsteroidal anti-inflammatory drugs.^{[citation needed]}

Other treatments include bisphosphonates, corticosteroids, radiotherapy, and radionucleotides.^[5] Percutaneous osteoplasty involves the use of bone cement to reduce pain and improve mobility.^[17] In palliative therapy, the main options are external radiation and radiopharmaceuticals.^[18] High-intensity focused ultrasound (HIFU) has CE approval for palliative care for bone metastasis, though treatments are still in investigatory phases as more information is needed to study effectiveness in order to obtain full approval in countries such as the USA.^{[citation needed]}

Thermal ablation techniques are increasingly being used in the palliative treatment of painful metastatic bone disease. Although the majority of patients experience complete or partial relief of pain following external radiation therapy, the effect is not immediate and has been shown in some studies to be transient in more than half of patients.^[19] For patients who are not eligible or do not respond to traditional therapies ( i.e. radiation therapy, chemotherapy, palliative surgery, bisphosphonates or analgesic medications), thermal ablation techniques have been explored as alternatives for pain reduction. Several multi-center clinical trials studying the efficacy of radiofrequency ablation in the treatment of moderate to severe pain in patients with metastatic bone disease have shown significant decreases in patient reported pain after treatment.^[20][21] These studies are limited, however, to patients with one or two metastatic sites; pain from multiple tumors can be difficult to localize for directed therapy. More recently, cryoablation has also been explored as a potentially effective alternative as the area of destruction created by this technique can be monitored more effectively by CT than radiofrequency ablation, a potential advantage when treating tumors adjacent to critical structures.^[22]

Monthly injections of radium-223 chloride (as Xofigo, formerly called Alpharadin) have been approved by the FDA in May 2013 for castration-resistant prostate cancer (CRPC) with bone metastases.

A Cochrane review of calcitonin for the treatment of metastatic bone pain indicated no benefit in reduction of bone pain, complications, or quality of life.^[23]

Epidemiology[edit | edit source]

Bone is the third most common location for metastasis, after the lung and liver.^[24] They are generally more common than bone tumors that originate from bone itself such as osteosarcoma, chondrosarcoma, and Ewing's sarcoma, which are rare.^[4]

The most common sites of bone metastases are the spine, pelvis, ribs, skull, and proximal femur.^[9]
