Us Aircraft A-67 Dragon
From Handwiki | A-67 Dragon | |
|---|---|
| |

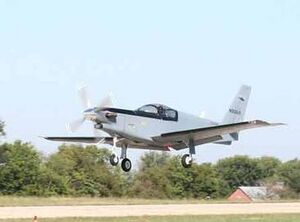

| First flight of the A-67 | |
| Role | Counter-insurgency aircraft |
| Manufacturer | US Aircraft Corp |
| First flight | October 2006 |
| Status | In development |
| Number built | 1 |
The US Aircraft A-67 Dragon is a single-engine, propeller-driven, ground-attack aircraft. It is designed for counter-insurgency (COIN), close air support (CAS), and intelligence, surveillance and reconnaissance (ISR) missions.[1] The A-67 is a low-cost aircraft built for low-intensity conflict situations, with a reported unit price of $4–5 million.[2] The sole aircraft built is in storage at the MAPS Air Museum.[3]
Specifications (A-67 prototype)
Data from Aircraft Comparison[4]
General characteristics
- Crew: 2
- Length: 34 ft 1.2 in (10.394 m)
- Wingspan: 38 ft (12 m)
- Wing area: 211 sq ft (19.6 m2)
- Empty weight: 4,800 lb (2,177 kg)
- Max takeoff weight: 10,200 lb (4,627 kg)
- Powerplant: 1 × Pratt & Whitney Canada PT6A-68/3 turboprop, 1,250 shp (930 kW)
- Propellers: 4-bladed constant-speed propeller
Performance
- Maximum speed: 371 kn (427 mph, 687 km/h)
- Range: 1,634 nmi (1,880 mi, 3,026 km)
- Service ceiling: 35,000 ft (11,000 m)
- Rate of climb: 4,882 ft/min (24.80 m/s)
- Wing loading: 35.1 lb/sq ft (171 kg/m2)
- Power/mass: 0.216 hp/lb (0.355 kW/kg)
See also
Aircraft of comparable role, configuration and era
- AHRLAC Holdings Ahrlac
- Air Tractor-L3Harris AT-802U Sky Warden
- Beechcraft T-6 Texan II
- Embraer EMB 314 Super Tucano
- KAI KT-1
- Pilatus PC-21
- Piper PA-48 Enforcer
- PZL-130 Orlik
- TAI Hürkuş
References
- ↑ ‘Iraqi COIN’ , Special Operations Technology, August 14, 2007.
- ↑ Warwick, Graham (2007-03-13). "US Aircraft taps Tucano’s former designer for new-look A-67 Dragon". Flight International. http://www.flightglobal.com/articles/2007/03/13/212539/us-aircraft-taps-tucanos-former-designer-for-new-look-a-67.html.
- ↑ Elliott, Dave (10 January 2018). "US AIRCRAFT A-67 "DRAGON"". http://mapsairmuseum.org/gallery-item/a-67-dragon.
- ↑ "Aircraft Comparison". USA: USAircraft Corporation. http://www.usaircraftcorp.com/AircraftComparison.pdf.
