List Of Reentering Space Debris

From Handwiki
Short description: none

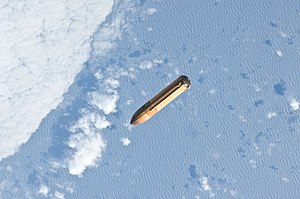

An external tank floats away from the Space Shuttle orbiter. 134 of these tanks were brought into orbit and then released for re-entry (135 total orbital missions minus Challenger)

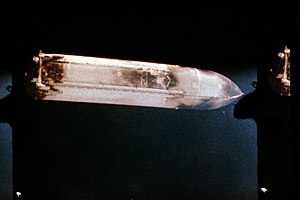

The External Tank for STS-1 is released from the Space Shuttle. This was a Standard Weight tank and was painted white

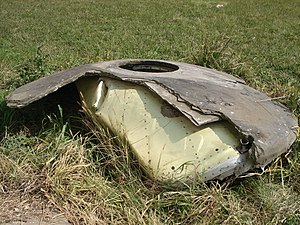

Debris from Salyut 7, which landed in Argentina in 1991

This is a list of artificial objects reentering Earth's atmosphere by mass (see space debris). Such objects are often completely destroyed by reentry heating, but large enough objects or components can survive. Most of the objects which reenter are relatively small; larger objects have survived but usually break up into smaller pieces during reentry.[1][2][3]

The list includes group entries for the 134 Space Shuttle external tanks used between 1981 and 2011. During Space Shuttle launches, the tanks reached space without reaching orbit and re-entered the atmosphere, breaking apart before impacting the ocean. The mass of those tanks varied throughout the years, as improvements made them lighter - successive modifications reduced their empty weight from approximately 77,000 pounds (35,000 kg) to approximately 58,500 lb (26,500 kg) for the Super Lightweight Tank used after 1998.[4] The tanks were also not necessarily completely empty when discarded.[5]

Many other launch systems have discarded spent stages into space, but not all stages go into orbit or even reach space (by passing the Kármán line). For example, the Space Shuttle side boosters did not reach space, as the highest altitude reached during their flight was only about 220,000 feet (67 km).

Examples of heaviest re-entering spacecraft or components

Object Owner Mass Reentry Date Age[6] Reentry type Launch Date[6][7]
Mir Russia 120,000 kg (260,000 lb) 2001-03-23 Template:Age for infant Controlled 20 February 1986
Skylab[3] USA 69,000 kg (152,000 lb) 1979-07-11 Template:Age for infant Partially Controlled 14 May 1973
Salyut 7/Cosmos 1686 USSR 40,000 kg (88,000 lb) 1991-02-07 Template:Age for infant Uncontrolled 13 May 1982
S-II Stage / Skylab USA 36,200 kg (79,700 lb) 11 January 1975 18 Months Uncontrolled 14 May 1973
STS external tank (Standard Tank) USA 35,000 kg (77,000 lb) and remaining propellants 1981 (1981–83) Partially Controlled
Salyut 6/Cosmos 1267 USSR 35,000 kg (77,000 lb) 1982-07-29 Template:Age for infant Controlled 29 September 1977
STS external tank (Lightweight Tank) USA 30,000 kg (66,000 lb) and remaining propellants 1983 (1983–98) Partially Controlled 1981-2011
Long March 5B core (5B-Y1 flight) China 21,600 kg (47,600 lb) 2020-05-11 6 days Uncontrolled 5 May 2020
Long March 5B core (5B-Y2 flight) China 21,600 kg (47,600 lb) 2021-05-09[8] 9 days Uncontrolled 29 April 2021
Cosmos 557 USSR 19,400 kg (42,800 lb) 1973-05-22 Template:Age for infant Uncontrolled 11 May 1973
Salyut 5 USSR 19,000 kg (42,000 lb) 1977-08-08 Template:Age for infant Controlled 2 June 1976
Salyut 1 USSR 18,900 kg (41,700 lb) 1971-10-11 Template:Age for infant Controlled 19 April 1971
Salyut 3 USSR 18,900 kg (41,700 lb) 1975-01-24 Template:Age for infant Controlled 25 June 1974
Salyut 4 USSR 18,900 kg (41,700 lb) 1977-02-02 Template:Age for infant Controlled 26 December 1974
Apollo SA-5 Nose Cone USA 17,100 kg (37,700 lb) 1966-04-30 Template:Age for infant Uncontrolled 29 January 1964
Apollo SA-6 CSM BP-13 USA 16,900 kg (37,300 lb) 1964-06-01 Template:Age for infant Uncontrolled 28 May 1964
Apollo SA-7 CSM BP-15 USA 16,650 kg (36,710 lb) 1964-09-22 Template:Age for infant Uncontrolled 18 September 1964
Cosmos 929 USSR 15,000 kg (33,000 lb) 1978-02-02 Template:Age for infant Controlled 17 July 1977
Cosmos 1443 USSR 15,000 kg (33,000 lb) 1983-09-19 Template:Age for infant Controlled 2 March 1983
CGRO[3] USA 14,910 kg (32,870 lb) 2000-06-04 Template:Age for infant Controlled 5 April 1991
Phobos-Grunt[9] Russia 13,500 kg (29,800 lb) 2012-01-15 Template:Age for infant Uncontrolled 9 November 2011
Pegasus 1 USA 10,297 kg (22,701 lb) [10] 1978-09-17[11] Template:Age for infant Uncontrolled 16 February 1965
Pegasus 2 USA 9,058 kg (19,969 lb)[10] 1979-11-03[11] Template:Age for infant Uncontrolled 25 May 1965
Tiangong-1 China 8,506 kg (18,753 lb) 2018-04-02[12] Template:Age for infant Uncontrolled 29 Sep 2011
UARS[13] NASA 5,900 kg (13,000 lb) 24 September 2011 Template:Age for infant Uncontrolled 12 September 1991
ROSAT[14] DLR 2,400 kg (5,300 lb) 2011-10-23 Template:Age for infant Uncontrolled 1 June 1990

See also

  • Center for Orbital and Reentry Debris Studies
  • Space Shuttle external tank
  • List of heaviest spacecraft
  • List of space debris producing events

References

  1. ↑ "Largest Objects to Reenter". Center for Orbital and Reentry Debris Studies. http://reentrynews.aero.org/largeobject.html.
  2. ↑ Orbiting Debris: A Space Environmental Problem-Background Paper (OTA-BP-ISC-72 ed.). U.S. Congress, Office of Technology Assessment. October 1990. http://www.fas.org/ota/reports/9033.pdf.
  3. ↑ 3.0 3.1 3.2 Larsen, Francis Lyall, Paul B. (2009). Space law : a treatise ([Online-Ausg.]. ed.). Farnham, Surrey, England: Ashgate. pp. 114–121. ISBN 978-0-7546-4390-6.
  4. ↑ "SPACE SHUTTLE PROGRAM HISTORY | Spaceline". https://www.spaceline.org/united-states-manned-space-flight/space-shuttle-program-history/.
  5. ↑ "NASA - The External Tank". https://www.nasa.gov/returntoflight/system/system_ET.html.
  6. ↑ 6.0 6.1 For composite objects such as space stations, age and launch date are based on the first launched module.
  7. ↑ McDowell, Jonathan. "Launch Log". Jonathan's Space Page. http://planet4589.org/space/log/launchlog.txt. Retrieved 20 December 2010.
  8. ↑ Clinch, Matt (2021-05-09). "China says its rocket debris landed in the Indian Ocean" (in en). https://www.cnbc.com/2021/05/09/china-says-rocket-debris-landed-in-indian-ocean-west-of-maldives.html.
  9. ↑ Amos, Jonathan (15 January 2012). "Phobos-Grunt: Failed probe 'falls over Pacific'". BBC. https://www.bbc.co.uk/news/science-environment-16491457.
  10. ↑ 10.0 10.1 "World Civil Satellites 1957-2006". Space Security Index. Archived from the original on 18 July 2011. https://web.archive.org/web/20110718022840/http://www.spacesecurity.org/files/WorldCivilSats2006.xls. Retrieved 20 December 2010.
  11. ↑ 11.0 11.1 McDowell, Jonathan. "Satellite Catalog". Jonathan's Space Page. http://www.planet4589.org/space/log/satcat.txt. Retrieved 20 December 2010.
  12. ↑ "18 SPCS on Twitter" (in en). https://twitter.com/18SPCS/status/980614448745406465. Retrieved 2 April 2018. "UPDATE: #JFSCC confirmed #Tiangong1 reentered the atmosphere over the southern Pacific Ocean at ~5:16 p.m. (PST) April 1. For details see http://www.space-track.org @US_Stratcom @usairforce @AFSpaceCC @30thSpaceWing @PeteAFB @SpaceTrackOrg"
  13. ↑ "Hardy 6-tonne satellite falls to Earth". New Scientist. 20 September 2011. https://www.newscientist.com/article/dn20940-hardy-6tonne-satellite-falls-to-earth.html. Retrieved 25 September 2014. ""This is the largest NASA satellite to come back uncontrolled for quite a while," says Nick Johnson, chief scientist for NASA's Orbital Debris Program Office at the Johnson Space Center in Houston, Texas."
  14. ↑ Paul Marks (23 September 2011). "Second big satellite set to resist re-entry burn-up". New Scientist. https://www.newscientist.com/article/dn20955-second-big-satellite-set-to-resist-reentry-burnup.html. Retrieved 25 September 2014.
